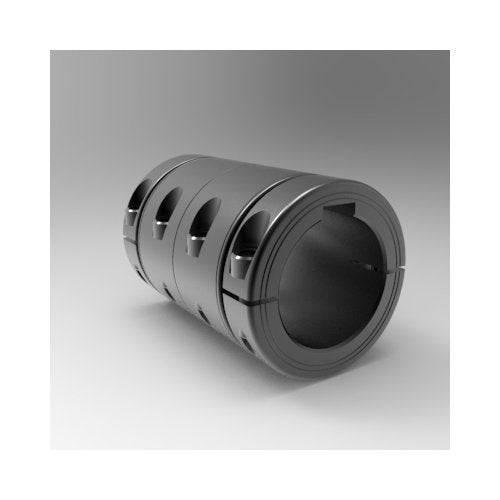

Metric Two-Piece Split Precision Sleeve Couplings with Keyways - Steel, 14mm Bore Size, Signature Series

Name: Metric Two-Piece Split Precision Sleeve Couplings with Keyways - Steel, 14mm Bore Size, Signature Series
Brand: Stafford Manufacturing Corp.
SKU: ROU-548545
Price: 49.99 USD
Availability: OutOfStock

SKU:ROU-548545

Achieve precision alignment with these Metric Two-Piece Split Precision Couplings. Steel construction, 14mm bore, RoHS2 & REACH compliant.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Two-Piece Split Precision Sleeve Couplings with Keyways offer unmatched precision and durability. Featuring a solid center section for a tight fit on shafting, keyways for added security, and a balanced design with self-centering clamping collars, these couplings ensure accurate shaft alignment. With a black oxide finish and made of high-quality steel, they are RoHS2 and REACH compliant. Ideal for applications requiring axial runout of less than .001" TIR. Convenient assembly, adjustment, and protection of shafts from damage make these couplings a reliable choice for industrial needs.

Product Specifications

Dimensional Attributes Bore Size A

14 mm

Dimensional Attributes Bore Size B

14 mm

Dimensional Attributes Keyway A

5 mm

Dimensional Attributes Keyway B

5 mm

Dimensional Attributes Outside Diameter

30 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M4 x 0.7 x 12

Dimensional Attributes Total Length

50 mm

Specifications Alloy

1215

Specifications Approximate Weight

0.38 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

5LM014014FKPSC

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Precision Sleeve

Specifications Upc Code

662786042638
