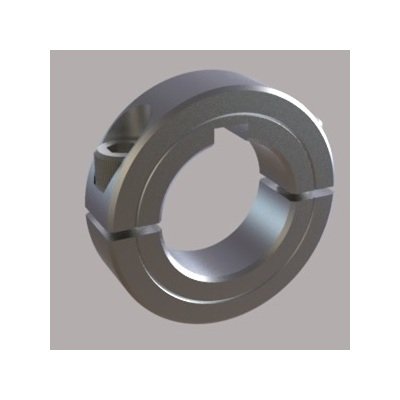

Metric Two-Piece Split Weldable Shaft Collars with Keyways - 20mm Bore

Name: Metric Two-Piece Split Weldable Shaft Collars with Keyways - 20mm Bore
Brand: Stafford Manufacturing Corp.
SKU: ROU-18fcaf
Price: 24.99 USD
Availability: OutOfStock

SKU:ROU-18fcaf

Enhance machinery with our Metric Weldable Shaft Collars. 1018 steel, fully metric, lead-free, superior holding power. Precision machined for reliability.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your machinery with precision and durability using our Metric Two-Piece Split Weldable Shaft Collars with Keyways. Made from 1018 steel, these collars are fully metric and lead-free for safe welding. Featuring a smooth bore to protect your shafts and superior holding power over set-screw collars, they offer versatility and high clamping power. Precision machined and easy to adjust, these collars can be placed anywhere on your shaft, providing reliability and stability for your industrial applications.

Product Specifications

Dimensional Attributes Bore Size

20 mm

Dimensional Attributes Keyway

6 mm

Dimensional Attributes Outside Diameter

40 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M6 x 1.0 x 16MM

Dimensional Attributes Width

15 mm

Specifications Alloy

1018

Specifications Approximate Weight

0.22 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

2MWM020K

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786042201

Metric Two-Piece Split Weldable Shaft Collars with Keyways - 20mm Bore
