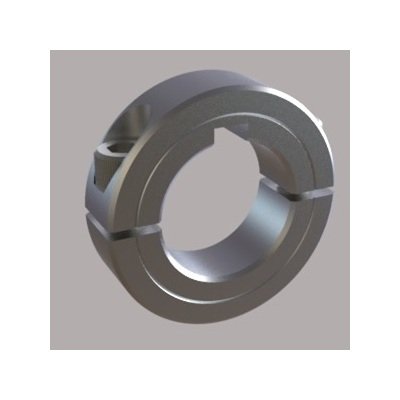

Metric Two-Piece Weldable Shaft Collars with Keyway, 35mm Bore

Name: Metric Two-Piece Weldable Shaft Collars with Keyway, 35mm Bore
Brand: Stafford Manufacturing Corp.
SKU: FLA-efbccf
Price: 24.99 USD
Availability: OutOfStock

SKU:FLA-efbccf

Upgrade with precision and safety using Metric Two-Piece Weldable Shaft Collars for superior holding power. Easy to adjust, with smooth bore protection.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your machinery with precision and safety using our Metric Two-Piece Weldable Shaft Collars. Made from lead-free 1018 steel, these collars ensure ease and safety during welding applications. Fully metric and featuring a smooth bore to protect shafts from damage, these collars offer superior holding power over set-screw type collars. Precision machined, non-marring, and easy to adjust, they can be placed anywhere on a shaft. With a black oxide finish, these low-profile collars are ideal for a wide range of applications. Available with a 10mm keyway for added convenience.

Product Specifications

Dimensional Attributes Bore Size

35 mm

Dimensional Attributes Keyway

10 mm

Dimensional Attributes Outside Diameter

57 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M6 x 1.0 x 18MM

Dimensional Attributes Width

15 mm

Specifications Alloy

1018

Specifications Approximate Weight

0.34 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

2MWM035K

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786042232

Metric Two-Piece Weldable Shaft Collars with Keyway, 35mm Bore
