Metric Two-Piece Weldable Shaft Collars with Keyways

Name: Metric Two-Piece Weldable Shaft Collars with Keyways
Brand: Stafford Manufacturing Corp.
SKU: ROU-1b574b
Price: 24.99 USD
Availability: OutOfStock

SKU:ROU-1b574b

High-quality Metric Weldable Shaft Collars with keyways for precise shaft positioning and superior holding power.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

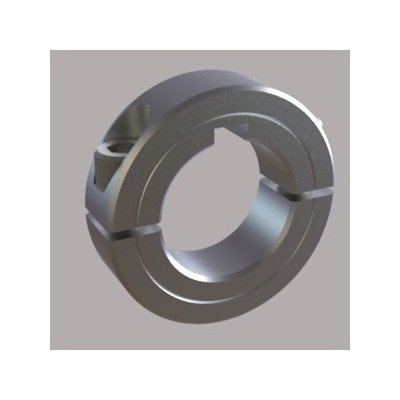

Crafted from 1018 steel, these Metric Two-Piece Weldable Shaft Collars offer superior holding power over set-screw types. Fully metric with clamp screws, they are lead-free for easier and safer welding. Precision machined for non-marring adjustments, they can be placed anywhere on a shaft, protecting it with a smooth bore. Available in a low-profile design, these collars come with a 40mm bore, 60mm outside diameter, 12mm keyway, and M6 x 1.0 x 18mm screws.

Product Specifications

Dimensional Attributes Bore Size

40 mm

Dimensional Attributes Keyway

12 mm

Dimensional Attributes Outside Diameter

60 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M6 x 1.0 x 18MM

Dimensional Attributes Width

15 mm

Specifications Alloy

1018

Specifications Approximate Weight

0.38 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

2MWM040K

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786042249

Metric Two-Piece Weldable Shaft Collars with Keyways
