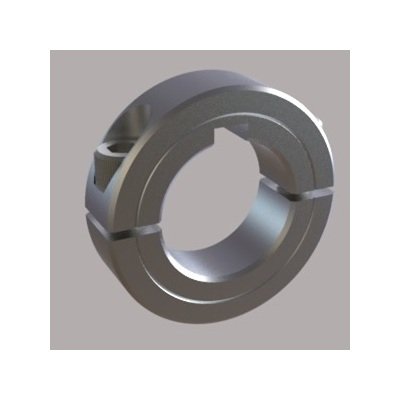

Metric Two-Piece Weldable Shaft Collars with Keyways

Name: Metric Two-Piece Weldable Shaft Collars with Keyways
Brand: Stafford Manufacturing Corp.
SKU: FLA-946767
Price: 29.99 USD
Availability: OutOfStock

SKU:FLA-946767

Precision-engineered Metric Weldable Shaft Collars for secure component welding, RoHS2 and REACH compliant, offering high clamping power and easy installation.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Safely weld components with ease using our Metric Two-Piece Weldable Shaft Collars. Made from RoHS2 and REACH compliant 1018 steel, these collars offer superior holding power, precise metric specifications, and easy installation on various shaft types. Featuring a smooth bore to protect shafts from damage, high clamping power, and the option for keyways. Precision machined and fully disassemblable for versatile positioning.

Product Specifications

Dimensional Attributes Bore Size

80 mm

Dimensional Attributes Keyway

22 mm

Dimensional Attributes Outside Diameter

108 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M8 x 1.25 x 25MM

Dimensional Attributes Width

19 mm

Specifications Alloy

1018

Specifications Approximate Weight

1.21 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

2MWM080K

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786042324

Metric Two-Piece Weldable Shaft Collars with Keyways
