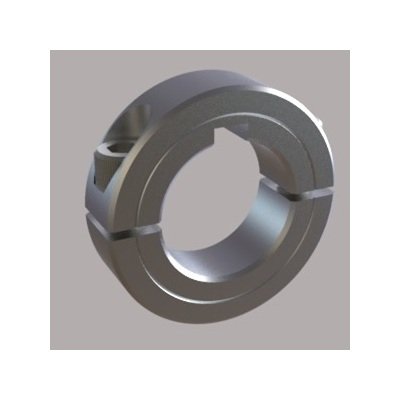

Metric Two-Piece Weldable Shaft Collars with Keyways - 25mm Bore

Name: Metric Two-Piece Weldable Shaft Collars with Keyways - 25mm Bore
Brand: Stafford Manufacturing Corp.
SKU: ROU-68c4c7
Price: 14.99 USD
Availability: OutOfStock

SKU:ROU-68c4c7

Precision-made Metric Two-Piece Weldable Shaft Collars for secure and versatile shaft assembly. Superior holding power and easy welding for various applications.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Ensure secure and precise shaft positioning with these Metric Two-Piece Weldable Shaft Collars. Made from 1018 steel, these collars offer superior holding power over set-screw types. Fully metric with clamp screws, they can be easily welded to components, making them versatile for various applications. Precision machined, non-marring, and adjustable, these collars protect shafts from damage and provide high clamping power. Available with an 8mm keyway for added compatibility.

Product Specifications

Dimensional Attributes Bore Size

25 mm

Dimensional Attributes Keyway

8 mm

Dimensional Attributes Outside Diameter

45 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M6 x 1.0 x 16MM

Dimensional Attributes Width

15 mm

Specifications Alloy

1018

Specifications Approximate Weight

0.26 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

2MWM025K

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786042218

Metric Two-Piece Weldable Shaft Collars with Keyways - 25mm Bore
