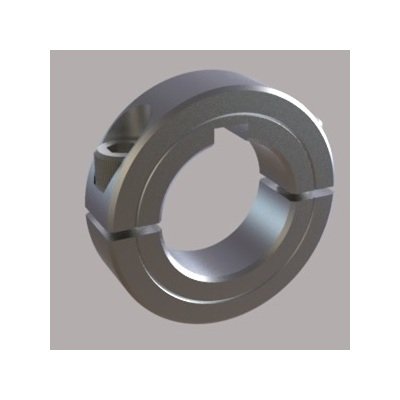

Metric Two-Piece Weldable Shaft Collars with Keyways - 65mm Bore
Metric Two-Piece Weldable Shaft Collars with Keyways - 65mm Bore
SKU:FLA-873766
Secure and precise Metric Two-Piece Weldable Shaft Collars with Keyways - Ideal for industrial use
Regular price
$32.50
Regular price
Sale price
$32.50
Unit price
per
Initiate Order
Metric Two-Piece Weldable Shaft Collars with Keyways - 65mm Bore
$32.50
Quantity: 1
Claim Your Seller Account
Metric Two-Piece Weldable Shaft Collars with Keyways - 65mm Bore
$32.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Metric Two-Piece Weldable Shaft Collars with Keyways offer secure, precise shaft positioning and protection. Made from 1018 steel, these collars provide superior holding power over set-screw types. Fully metric with a smooth bore to prevent shaft damage, they can be easily adjusted on round shafts or thin wall tubes. Precision machined for high clamping power, these collars are lead-free for safe welding. Featuring a black oxide finish, they come with clamp screws for convenient installation. Ideal for industrial applications requiring reliable shaft retention.
Product Specifications
Dimensional Attributes Bore Size
65 mm
Dimensional Attributes Keyway
18 mm
Dimensional Attributes Outside Diameter
93 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M8 x 1.25 x 25MM
Dimensional Attributes Width
19 mm
Specifications Alloy
1018
Specifications Approximate Weight
1.11 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
2MWM065K
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786042294
