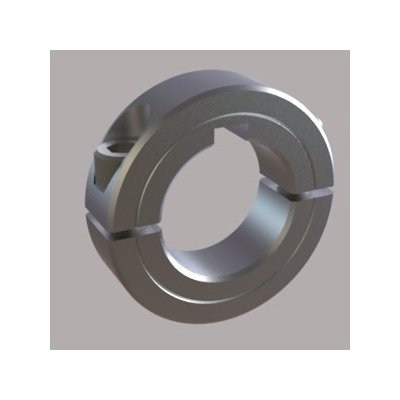

Metric Two-Piece Weldable Shaft Collars with Keyways - 80mm Bore

Name: Metric Two-Piece Weldable Shaft Collars with Keyways - 80mm Bore
Brand: Stafford Manufacturing Corp.
SKU: ROU-946767
Price: 35.99 USD
Availability: OutOfStock

SKU:ROU-946767

Precision-weld with ease and safety using Metric Two-Piece Weldable Shaft Collars with Keyways. Superior holding power and ease of adjustment on standard round shafts.

$35.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Two-Piece Weldable Shaft Collars with Keyways offer superior holding power over set-screw collars, ensuring safety and ease during welding with lead-free 1018 steel. Precision machined for non-marring installation on standard round shafts, these collars can be placed anywhere on a shaft, protecting it with a smooth bore. Fully metric and adjustable, they come in a low-profile design for high clamping power and corrosion resistance.

Product Specifications

Dimensional Attributes Bore Size

80 mm

Dimensional Attributes Keyway

22 mm

Dimensional Attributes Outside Diameter

108 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M8 x 1.25 x 25MM

Dimensional Attributes Width

19 mm

Specifications Alloy

1018

Specifications Approximate Weight

1.21 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

2MWM080K

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786042324

Metric Two-Piece Weldable Shaft Collars with Keyways - 80mm Bore
