Metric Weldable Shaft Collar with Keyway, 55mm Bore
Metric Weldable Shaft Collar with Keyway, 55mm Bore
SKU:ROU-24a5b9
Precision machined Metric Weldable Shaft Collar with Keyway, 55mm bore, for secure, flexible shaft fastening. RoHS2 & REACH compliant.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Metric Weldable Shaft Collar with Keyway, 55mm Bore
$34.99
Quantity: 1
Claim Your Seller Account
Metric Weldable Shaft Collar with Keyway, 55mm Bore
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

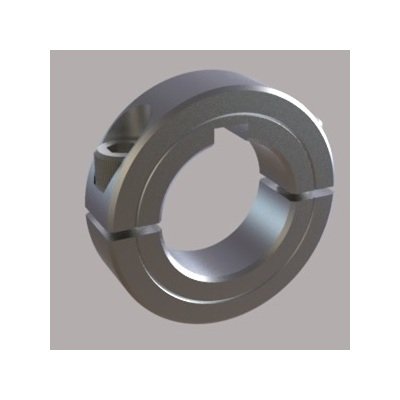

The Metric Two-Piece Split Weldable Shaft Collar with Keyway is precision machined from lead-free 1018 steel, ensuring easy and safe welding to components. This low profile collar offers superior holding power over set-screw types, with full metric specifications for clamp screws. Designed for standard round shafts and thin-wall tubes, it features a smooth bore that protects shafts from damage and allows for flexible positioning. The collar can be disassembled and repositioned with ease, providing high clamping power for secure fastening. Available in a black oxide finish, this collar is RoHS2 and REACH compliant.
Product Specifications
Dimensional Attributes Bore Size
55 mm
Dimensional Attributes Keyway
16 mm
Dimensional Attributes Outside Diameter
82 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M8 x 1.25 x 25MM
Dimensional Attributes Width
19 mm
Specifications Alloy
1018
Specifications Approximate Weight
0.92 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
2MWM055K
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786042270
