Metric Weldable Shaft Collar with Keyway, 60mm

Name: Metric Weldable Shaft Collar with Keyway, 60mm
Brand: Stafford Manufacturing Corp.
SKU: ROU-e2e9bf
Price: 27.99 USD
Availability: OutOfStock

SKU:ROU-e2e9bf

Precision-engineered Metric Weldable Shaft Collar for secure and adjustable shaft positioning. RoHS2 and REACH compliant.

$27.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

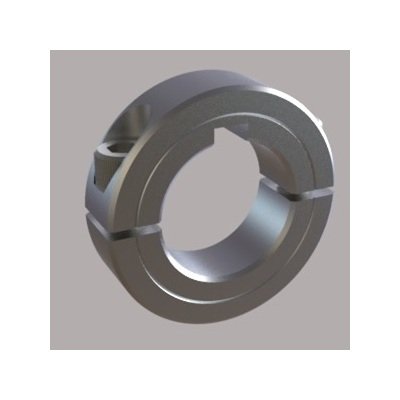

The Metric Two-Piece Split Weldable Shaft Collar with Keyway is engineered from 1018 steel, ensuring safety and precision in welding applications. Fully metric with a black oxide finish, this low-profile collar offers superior clamping power and easy adjustment. Featuring a 60mm bore size, 88mm outside diameter, and 18mm keyway, this collar is RoHS2 and REACH compliant, making it an ideal choice for industrial applications.

Product Specifications

Dimensional Attributes Bore Size

60 mm

Dimensional Attributes Keyway

18 mm

Dimensional Attributes Outside Diameter

88 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M8 x 1.25 x 25MM

Dimensional Attributes Width

19 mm

Specifications Alloy

1018

Specifications Approximate Weight

1.04 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

2MWM060K

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786042287

Metric Weldable Shaft Collar with Keyway, 60mm
