Metric Weldable Shaft Collar with Keyway, 70mm Bore
Metric Weldable Shaft Collar with Keyway, 70mm Bore
SKU:ROU-2ec87d
High-quality Metric Weldable Shaft Collar with Keyway for secure and precise shaft positioning
Regular price
$32.50
Regular price
Sale price
$32.50
Unit price
per
Initiate Order
Metric Weldable Shaft Collar with Keyway, 70mm Bore
$32.50
Quantity: 1
Claim Your Seller Account
Metric Weldable Shaft Collar with Keyway, 70mm Bore
$32.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

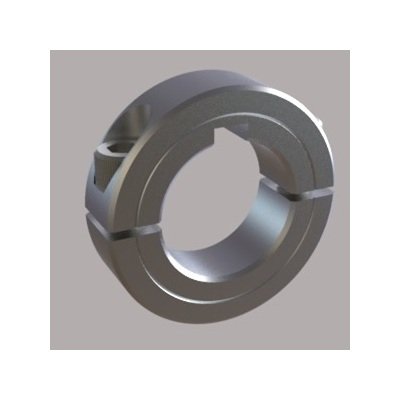

Designed for precision and ease of use, the Metric Two-Piece Split Weldable Shaft Collar with Keyway is crafted from 1018 steel for optimal welding safety. Fully metric with high clamping power, this collar protects shafts from damage and offers superior holding strength. Perfect for standard round shafts, tubes, or split hubs, this low-profile collar is RoHS2 and REACH compliant, ensuring quality and safety.
Product Specifications
Dimensional Attributes Bore Size
70 mm
Dimensional Attributes Keyway
20 mm
Dimensional Attributes Outside Diameter
98 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M8 x 1.25 x 25MM
Dimensional Attributes Width
19 mm
Specifications Alloy
1018
Specifications Approximate Weight
1.19 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
2MWM070K
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786042300
