Metric Weldable Shaft Collar with Keyway, 75mm Bore
Metric Weldable Shaft Collar with Keyway, 75mm Bore
SKU:FLA-533da1
Precision-made Metric Weldable Shaft Collar with Keyway for secure and safe shaft positioning. RoHS2 & REACH compliant.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
Metric Weldable Shaft Collar with Keyway, 75mm Bore
$42.99
Quantity: 1
Claim Your Seller Account
Metric Weldable Shaft Collar with Keyway, 75mm Bore
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

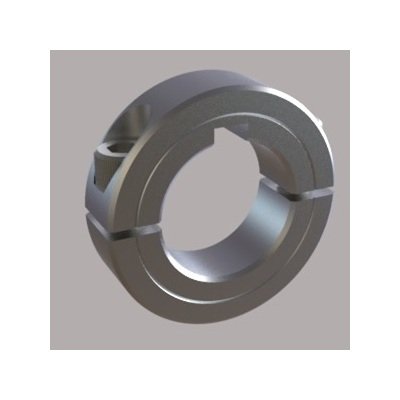

The Metric Two-Piece Split Weldable Shaft Collar with Keyway is precision-engineered from 1018 steel, offering ease and safety during welding applications. Fully metric design with black oxide finish, it ensures secure positioning anywhere on the shaft without marring or damaging. Featuring high clamping power, it outperforms set-screw collars, with dimensions of 75mm bore, 103mm outside diameter, 20mm keyway, and M8 screws. RoHS2 and REACH compliant, this low-profile collar is ideal for industrial and government procurement needs.
Product Specifications
Dimensional Attributes Bore Size
75 mm
Dimensional Attributes Keyway
20 mm
Dimensional Attributes Outside Diameter
103 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M8 x 1.25 x 25MM
Dimensional Attributes Width
19 mm
Specifications Alloy
1018
Specifications Approximate Weight
1.25 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
2MWM075K
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786042317
