Metric Weldable Shaft Collars with Keyways
Metric Weldable Shaft Collars with Keyways
SKU:FLA-2ec87d
Precision-engineered Metric Weldable Shaft Collars with Keyways for secure and versatile shaft mounting applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Metric Weldable Shaft Collars with Keyways
$39.99
Quantity: 1
Claim Your Seller Account
Metric Weldable Shaft Collars with Keyways
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

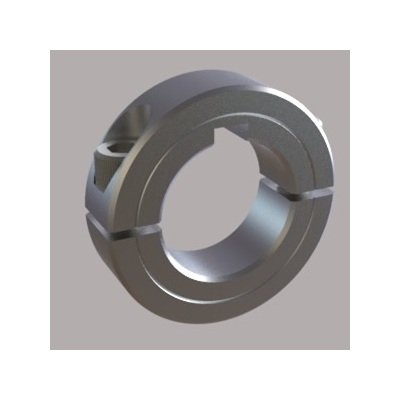

The Metric Two-Piece Weldable Shaft Collars with Keyways are precision-engineered from lead-free 1018 steel, ensuring ease and safety during welding. Fully metric and featuring a smooth bore for shaft protection, these collars offer superior holding power compared to set-screw types. Designed for versatility, these clamp-type collars can be disassembled and repositioned on various shaft types. With high clamping power, non-marring properties, and the option for keyways, these collars provide reliable performance in diverse applications.
Product Specifications
Dimensional Attributes Bore Size
70 mm
Dimensional Attributes Keyway
20 mm
Dimensional Attributes Outside Diameter
98 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M8 x 1.25 x 25MM
Dimensional Attributes Width
19 mm
Specifications Alloy
1018
Specifications Approximate Weight
1.19 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
2MWM070K
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786042300
