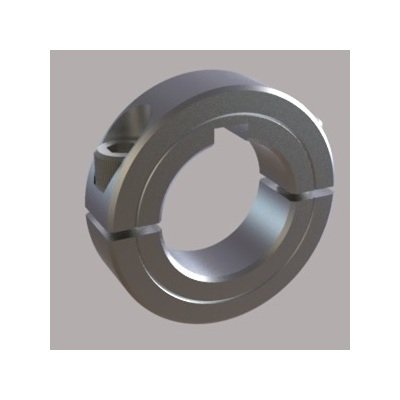

Metric Weldable Shaft Collars with Keyways, 25mm Bore

Name: Metric Weldable Shaft Collars with Keyways, 25mm Bore
Brand: Stafford Manufacturing Corp.
SKU: FLA-68c4c7
Price: 29.99 USD
Availability: OutOfStock

SKU:FLA-68c4c7

High-quality Metric Weldable Shaft Collars with Keyways for secure, damage-free shaft connections. RoHS2 & REACH compliant, made in the USA.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Weldable Shaft Collars with Keyways, crafted from 1018 steel, offer superior holding power and precise adjustment. Fully metric with a smooth bore, these collars can be positioned on various shaft types. Featuring a low-profile design, black oxide finish, and high clamping power, these collars ensure secure and damage-free shaft connections. RoHS2 and REACH compliant, made in the USA.

Product Specifications

Dimensional Attributes Bore Size

25 mm

Dimensional Attributes Keyway

8 mm

Dimensional Attributes Outside Diameter

45 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M6 x 1.0 x 16MM

Dimensional Attributes Width

15 mm

Specifications Alloy

1018

Specifications Approximate Weight

0.26 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

2MWM025K

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786042218

Metric Weldable Shaft Collars with Keyways, 25mm Bore
