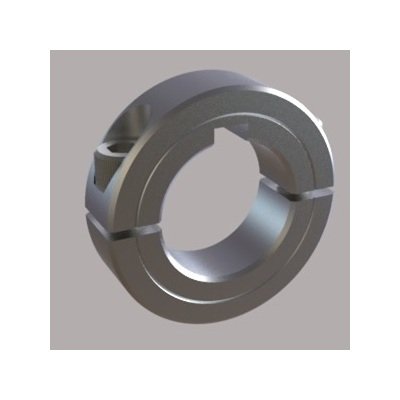

Metric Weldable Shaft Collars with Keyways, 30mm Bore

Name: Metric Weldable Shaft Collars with Keyways, 30mm Bore
Brand: Stafford Manufacturing Corp.
SKU: FLA-ac337c
Price: 24.99 USD
Availability: OutOfStock

SKU:FLA-ac337c

Precision machined Metric Weldable Shaft Collars with keyways for safe welding and adjustable positioning on shafts.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Two-Piece Split Weldable Shaft Collars with Keyways are precision machined from 1018 steel, offering superior holding power over set-screw collars. Fully metric and lead-free for safe welding, these collars protect shafts with a smooth bore and can be easily adjusted anywhere on a shaft. Non-marring and disassemblable, they provide high clamping power and come with keyways for added versatility.

Product Specifications

Dimensional Attributes Bore Size

30 mm

Dimensional Attributes Keyway

8 mm

Dimensional Attributes Outside Diameter

54 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M6 x 1.0 x 18MM

Dimensional Attributes Width

15 mm

Specifications Alloy

1018

Specifications Approximate Weight

0.28 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

2MWM030K

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786042225

Metric Weldable Shaft Collars with Keyways, 30mm Bore
