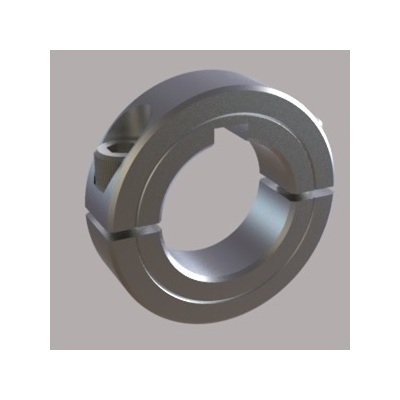

Metric Weldable Shaft Collars with Keyways 50mm

Name: Metric Weldable Shaft Collars with Keyways 50mm
Brand: Stafford Manufacturing Corp.
SKU: FLA-426e1d
Price: 28.99 USD
Availability: OutOfStock

SKU:FLA-426e1d

Discover superior holding power with our Metric Weldable Shaft Collars in 1018 steel, fully metric, providing versatile and safe placement on shafts.

$28.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Two-Piece Split Weldable Shaft Collars with Keyways in 1018 steel are designed for optimal performance and safety during welding. Fully metric, inclusive of clamp screws, these collars offer versatile placement on shafts. Featuring a smooth bore to safeguard shafts, these collars provide superior holding power compared to set-screw types. Precision machined, non-marring, and easy to adjust, these collars ensure high clamping power. Available in a low-profile design with dimensions: 50mm bore, 78mm outside diameter, 14mm keyway, and 19mm width. Crafted in the USA and compliant with RoHS2 and REACH standards.

Product Specifications

Dimensional Attributes Bore Size

50 mm

Dimensional Attributes Keyway

14 mm

Dimensional Attributes Outside Diameter

78 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M8 x 1.25 x 25MM

Dimensional Attributes Width

19 mm

Specifications Alloy

1018

Specifications Approximate Weight

0.89 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

2MWM050K

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786042263
