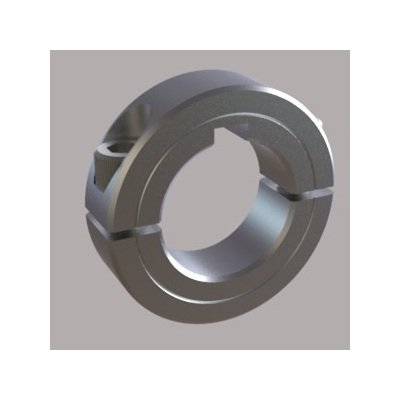

Metric Weldable Shaft Collars with Keyways, 55mm Bore
Metric Weldable Shaft Collars with Keyways, 55mm Bore
SKU:FLA-24a5b9
High-quality Metric Weldable Shaft Collars with Keyways, 1018 steel construction, fully metric design, smooth bore for shaft protection, and precision machining for secure clamping.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Metric Weldable Shaft Collars with Keyways, 55mm Bore
$39.99
Quantity: 1
Claim Your Seller Account
Metric Weldable Shaft Collars with Keyways, 55mm Bore
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Metric Two-Piece Split Weldable Shaft Collars with Keyways, constructed from 1018 steel, offer unmatched safety and ease during welding. Fully metric with high clamping power, these collars feature a smooth bore to shield shafts from damage. Precision machined and lead-free, these collars are ideal for use on standard round shafts or split hubs. Available in a low-profile design with black oxide finish, these collars come with alloy steel clamp screws for secure fastening. Whether for hard or soft shafts, these collars ensure superior holding power over traditional set-screw collars.
Product Specifications
Dimensional Attributes Bore Size
55 mm
Dimensional Attributes Keyway
16 mm
Dimensional Attributes Outside Diameter
82 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M8 x 1.25 x 25MM
Dimensional Attributes Width
19 mm
Specifications Alloy
1018
Specifications Approximate Weight
0.92 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
2MWM055K
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786042270
