MicroCentric 5W Precision Collets
MicroCentric 5W Precision Collets
SKU:WID-9aa04c
Enhance precision in machining with MicroCentric 5W Precision Collets. Custom-made for exact requirements, ensuring accuracy and reliability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
MicroCentric 5W Precision Collets
$129.99
Quantity: 1
Claim Your Seller Account
MicroCentric 5W Precision Collets
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

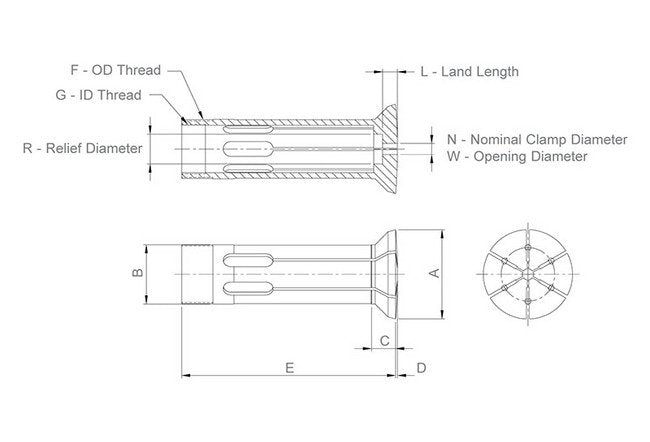

The MicroCentric 5W Precision Collets feature a specialized six-segmented design tailored for precise industrial applications. Exclusively crafted by MicroCentric, these collets are custom-made to meet exact requirements. Each order necessitates specific details such as N (Nominal Clamping Diameter), W (Opening Diameter), L (Land Length), and R (Relief Diameter). With dimensions including A: 1.875 in, B: 1.250 in, C: 0.430 in, D: 0.039 in, E: 4.500 in, F: 1.238"-20 RH, G: 1.041"-24 RH, these collets ensure superior accuracy and reliability in machining tasks.
Product Specifications
Specifications A Dimension
1.875 in | 47.6 mm
Specifications B Dimension
1.250 in | 31.75 mm
Specifications C Dimension
0.430 in | 10.9 mm
Specifications D Dimension
0.039 in | 1.0 mm
Specifications E Dimension
4.500 in | 114.3 mm
Specifications F Dimension
1.238"-20 RH
Specifications G Dimension
1.041"-24 RH
