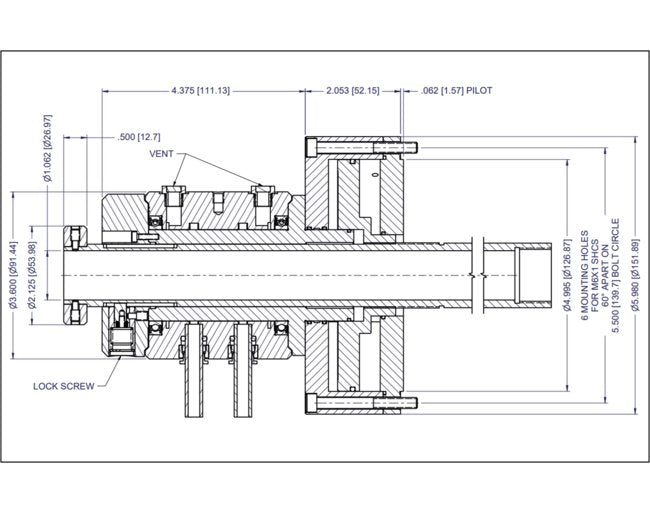

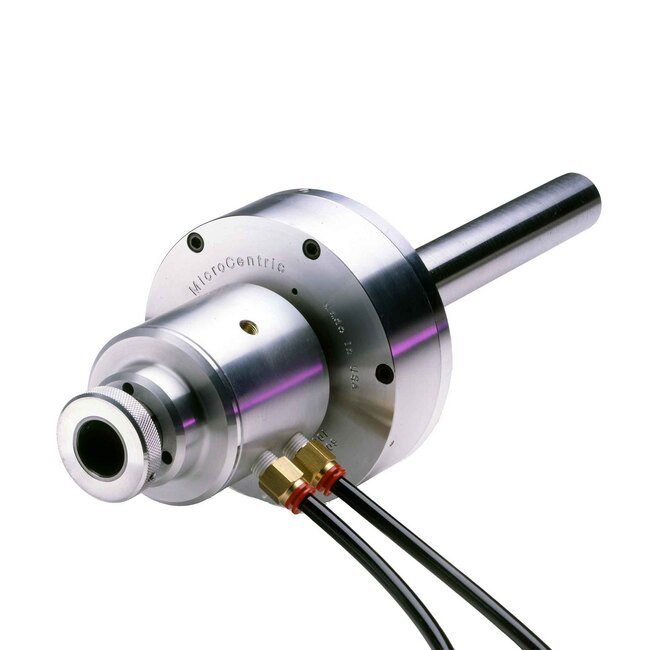

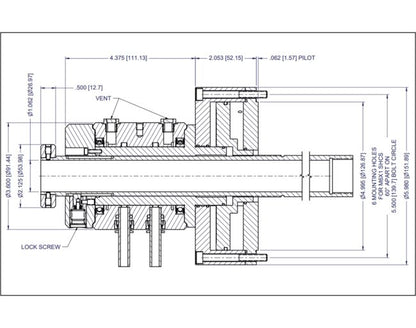

The MicroCentric LDN/A Adjustable Draw Tube Models are meticulously designed for precise collet installation and tension adjustment on 5C spindles. With a 6-inch diameter and a 1.063" through hole, these air cylinders cater to high-speed operations up to 6,000 rpm. The sealed air bearing assembly, supported by high-speed sealed bearings, ensures unparalleled performance and reliability. These maintenance-free cylinders allow for fine-tuned draw tube force adjustments, preventing workpiece distortion during clamping. Additionally, they can be seamlessly integrated into various machine spindle and rotary table setups, supporting jaw, collet, and diaphragm chuck actuation.
Product Specifications
Air Cylinder Options Check Valves
Special LDN Cylinders are avail able with integral check valves. Check valves will maintain air pressure in the cylinder and keep the chuck or workholding fixture clamped in the event there is an interruption to the air supply.Contact our sales engineers for information on LDN Cylinders with check valves.
Air Cylinder Options Mounting Plates Draw Tubes
Spindle mounting plates and draw tubes to adapt LDN Air Cylinders to a specific machine spindle or rotary table are quoted on request.
Air Cylinder Options Proximity Switches
A proximity switch kit is available for most LDN Cylinders. Proximity switches provide a signal to the machine control to confirm whether the chuck or workholding fixture is clamped or unclamped.Contact our sales engineers for information on proximity switch kits for LDN Cylinders.
Specifications Draw Tube Force
1,640 lbf | 745 kgf
Specifications Item No
32 060 044
Specifications Max Air Pressure
150 psi | 10.5 kg/cm²
Specifications Max Rpm
6,000
Specifications Piston Stroke
.394 in | 10 mm
Specifications Size
6 in | 152 mm
Specifications Through Hole
1.063 in | 27 mm
Specifications Weight
14.5 lb | 6.6 kg
