Experience unmatched precision and reliability with MicroCentric LDN Air Cylinders. Fine-tuned clamping force for distortion-free workpieces.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
MicroCentric LDN Air Cylinders
$1,899.99
Quantity: 1
Claim Your Seller Account
MicroCentric LDN Air Cylinders
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

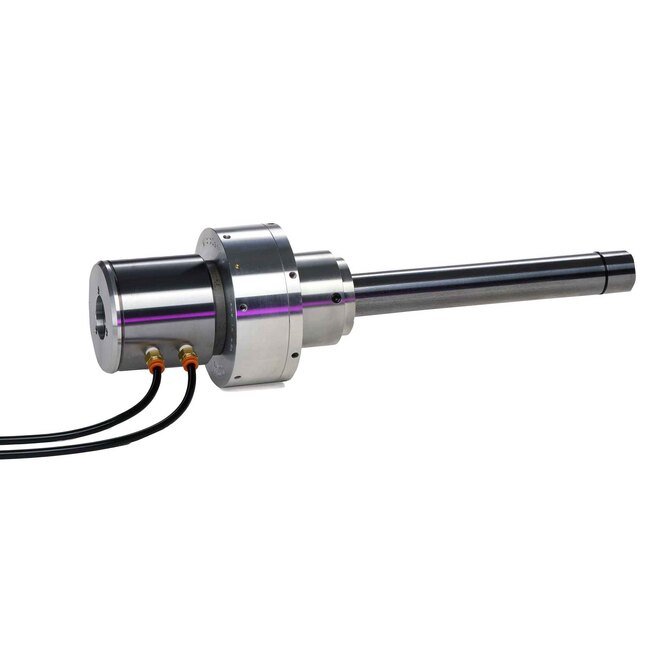

The MicroCentric LDN Air Cylinders offer unmatched performance and reliability for precision workholding. Available in 6, 8, and 10-inch diameter models with through holes up to 1.102 inches, these cylinders provide clamping force up to 5,200 lbs. Featuring a high-performance sealed design air bearing assembly and maintenance-free operation, these cylinders ensure fine adjustment of draw tube force to prevent workpiece distortion. With options like proximity switches and integral check valves, they can be tailored to specific machine configurations.
Product Specifications
Air Cylinder Options Check Valves
Special LDN Cylinders are avail able with integral check valves. Check valves will maintain air pressure in the cylinder and keep the chuck or workholding fixture clamped in the event there is an interruption to the air supply.Contact our sales engineers for information on LDN Cylinders with check valves.
Air Cylinder Options Mounting Plates Draw Tubes
Spindle mounting plates and draw tubes to adapt LDN Air Cylinders to a specific machine spindle or rotary table are quoted on request.
Air Cylinder Options Proximity Switches
A proximity switch kit is available for most LDN Cylinders. Proximity switches provide a signal to the machine control to confirm whether the chuck or workholding fixture is clamped or unclamped.Contact our sales engineers for information on proximity switch kits for LDN Cylinders.

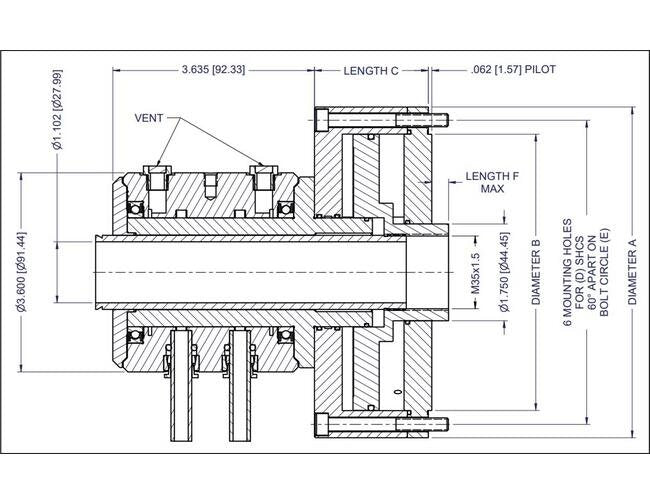

Specifications A Dimension
10.000 in | 254 mm
Specifications B Dimension
8.495 in | 216.87 mm
Specifications C Dimension
3.186 in | 80.92 mm
Specifications Draw Tube Force
5,200 lbf | 2,364 kgf
Specifications D Dimension
M8
Specifications E Dimension
9.250 in | 234.95 mm
Specifications F Dimension
.355 in | 9 mm
Specifications Item No
32 100 012
Specifications Max Air Pressure
150 psi | 10.5 kg/cm²
Specifications Max Rpm
4,000
Specifications Piston Stroke
.710 in | 18 mm
Specifications Size
10 in | 254 mm
Specifications Through Hole
1.102 in | 28 mm
Specifications Weight
32 lb | 14.5 kg
