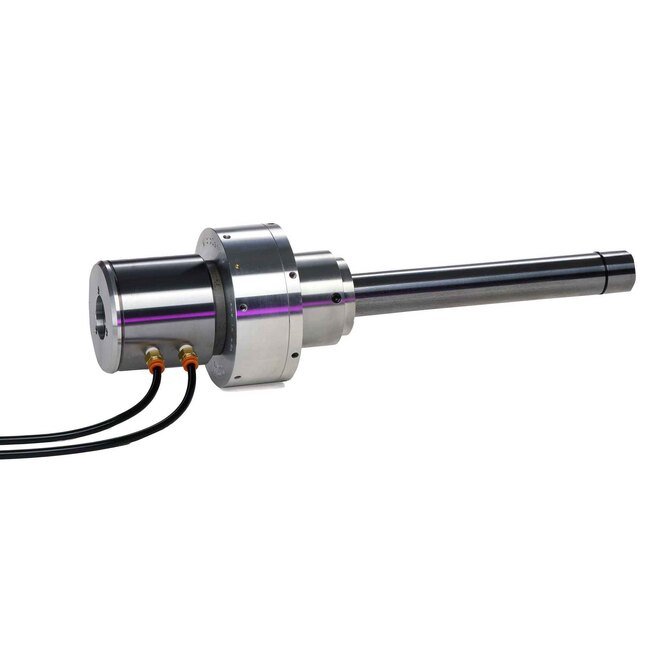

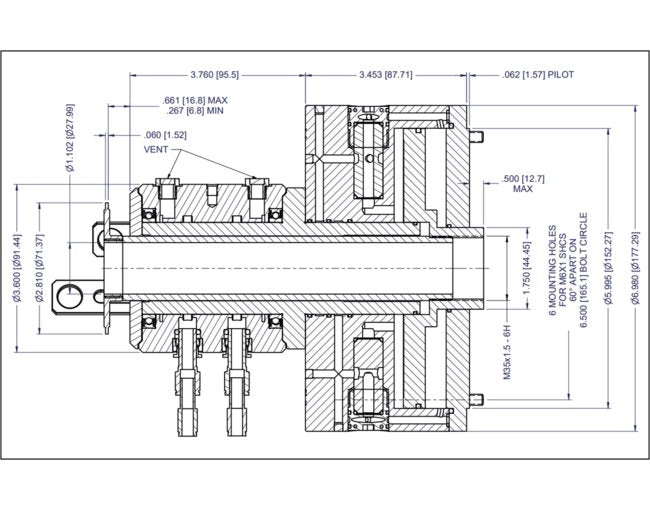

MicroCentric LDN/LV Through Hole Air Cylinder with Lock Valve
MicroCentric LDN/LV Through Hole Air Cylinder with Lock Valve
SKU:AIR-0d6e2a
High-performance MicroCentric LDN/LV Through Hole Air Cylinder with Lock Valve for precise and reliable clamping in machining applications.
Regular price
$649.99
Regular price
Sale price
$649.99
Unit price
per
Initiate Order
MicroCentric LDN/LV Through Hole Air Cylinder with Lock Valve
$649.99
Quantity: 1
Claim Your Seller Account
MicroCentric LDN/LV Through Hole Air Cylinder with Lock Valve
$649.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MicroCentric LDN/LV Through Hole Air Cylinder with Lock Valve is a high-performance solution designed for precise clamping in machining applications. This air cylinder features a 7-inch diameter with a 1.102-inch through hole, capable of speeds up to 6,000 rpm. The built-in lock and release valves provide added control and reliability. With a piston stroke of .394 inches and a max air pressure of 150 psi, this cylinder offers exceptional draw tube force of 2,520 lbf to prevent workpiece distortion. Additionally, it is maintenance-free, ensuring continuous operation with only filtered air. Ideal for adapting to various machine spindle and rotary table configurations, this cylinder is a dependable choice for industrial settings.
Product Specifications
Air Cylinder Options Check Valves
Special LDZ Cylinders are avail able with integral check valves. Check valves will maintain air pressure in the cylinder and keep the chuck or workholding fixture clamped in the event there is an interruption to the air supply. Contact our sales engineers for information on LDZ Cylinders with check valves.
Air Cylinder Options Mounting Plates Draw Tubes
Spindle mounting plates and draw tubes to adapt LDZ Air Cylinders to a specific machine spindle or rotary table are quoted on request.
Air Cylinder Options Proximity Switches
A proximity switch kit is available for most LDZ Cylinders. Proximity switches provide a signal to the machine control to confirm whether the chuck or workholding fixture is clamped or unclamped. Contact our sales engineers for information on proximity switch kits for LDZ Cylinders.
Specifications Draw Tube Force
2,520 lbf | 1140 kgf
Specifications Item No
32 070 001
Specifications Max Air Pressure
150 psi | 10.5 kg/cm²
Specifications Max Rpm
6,000
Specifications Piston Stroke
.394 in | 10 mm
Specifications Size
7 in | 177 mm
Specifications Through Hole
1.102 in | 28 mm
Specifications Weight
24 lb | 11 kg
