MicroCentric LDN/RE Air Cylinder with Stroke Control
$789.00
Quantity: 1
Claim Your Seller Account
MicroCentric LDN/RE Air Cylinder with Stroke Control
$789.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

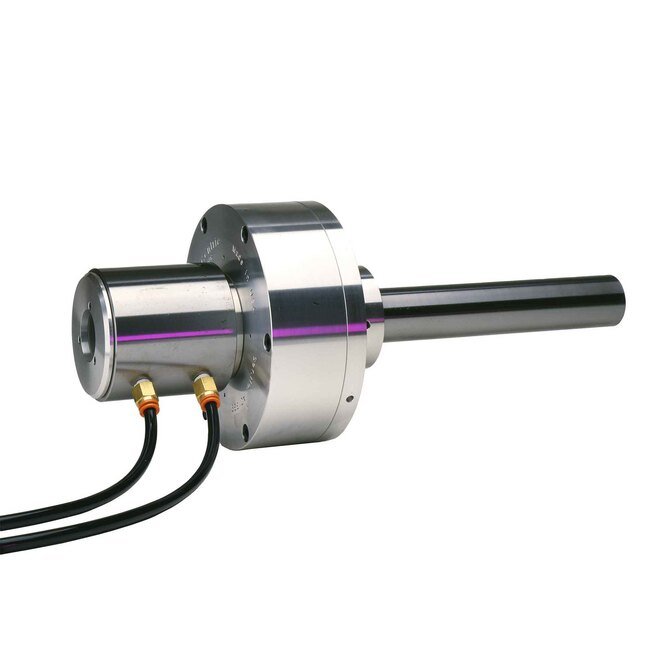

The MicroCentric LDN/RE Through Hole Models with Stroke Control offer precision and reliability for fine adjustment of draw tube force, preventing workpiece distortion during clamping. With a high performance sealed design air bearing assembly and maintenance-free operation, these air cylinders are available in 6, 8, and 10-inch diameter models with a 1.102-inch through hole. Speeds up to 6,000 rpm and compatibility with various machine spindle and rotary table configurations make these cylinders a versatile and efficient choice for industrial applications.
Product Specifications
Air Cylinder Options Check Valves
Special LDZ Cylinders are avail able with integral check valves. Check valves will maintain air pressure in the cylinder and keep the chuck or workholding fixture clamped in the event there is an interruption to the air supply. Contact our sales engineers for information on LDZ Cylinders with check valves.
Air Cylinder Options Mounting Plates Draw Tubes
Spindle mounting plates and draw tubes to adapt LDZ Air Cylinders to a specific machine spindle or rotary table are quoted on request.
Air Cylinder Options Proximity Switches
A proximity switch kit is available for most LDZ Cylinders. Proximity switches provide a signal to the machine control to confirm whether the chuck or workholding fixture is clamped or unclamped. Contact our sales engineers for information on proximity switch kits for LDZ Cylinders.

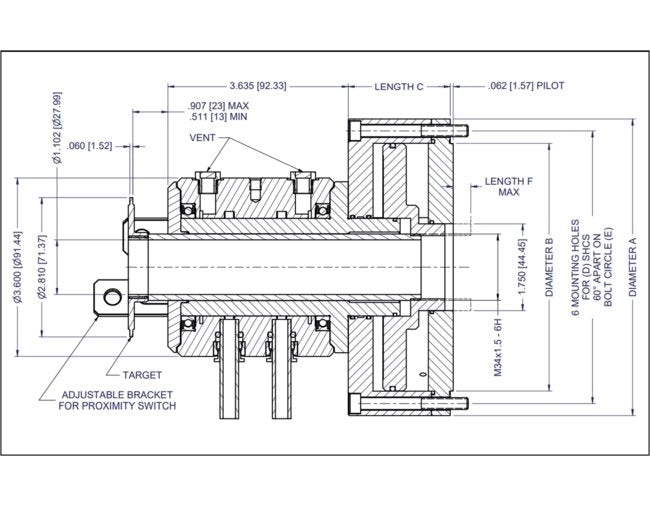

Specifications A Dimension
7.980 in | 202.69 mm
Specifications B Dimension
6.495 in | 164.97 mm
Specifications C Dimension
3.186 in | 80.92 mm
Specifications Draw Tube Force
2,920 lbf | 1,327 kgf
Specifications D Dimension
M8
Specifications E Dimension
7.250 in | 184.15 mm
Specifications F Dimension
.355 in | 9 mm
Specifications Item No
32 080 028
Specifications Max Air Pressure
150 psi | 10.5 kg/cm²
Specifications Max Rpm
5,000
Specifications Piston Stroke
.710 in | 18 mm
Specifications Size
8 in | 203 mm
Specifications Through Hole
1.102 in | 28 mm
Specifications Weight
23 lb | 10.5 kg
