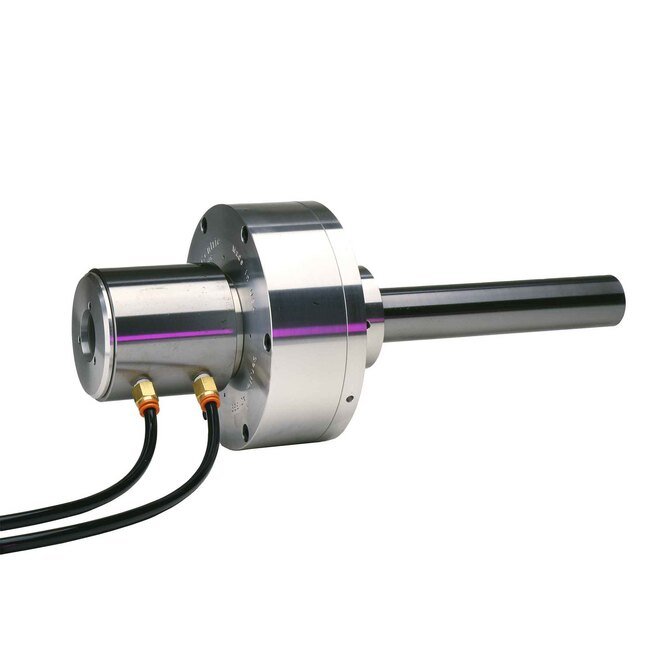

The MicroCentric LDN/RE Through Hole Air Cylinder Models with Stroke Control offer exceptional performance and reliability for precision workholding applications. Available in 6, 8, and 10-inch diameter models with a 1.102" through hole, these cylinders provide speeds up to 6,000 rpm. With a piston stroke of .394" and a max draw tube force of 1,640 lbf, they allow fine adjustment to prevent workpiece distortion. Maintenance-free and designed for compatibility with various machine configurations, these air cylinders are the ideal choice for ensuring precise clamping forces.
Product Specifications
Air Cylinder Options Check Valves
Special LDZ Cylinders are avail able with integral check valves. Check valves will maintain air pressure in the cylinder and keep the chuck or workholding fixture clamped in the event there is an interruption to the air supply. Contact our sales engineers for information on LDZ Cylinders with check valves.
Air Cylinder Options Mounting Plates Draw Tubes
Spindle mounting plates and draw tubes to adapt LDZ Air Cylinders to a specific machine spindle or rotary table are quoted on request.
Air Cylinder Options Proximity Switches
A proximity switch kit is available for most LDZ Cylinders. Proximity switches provide a signal to the machine control to confirm whether the chuck or workholding fixture is clamped or unclamped. Contact our sales engineers for information on proximity switch kits for LDZ Cylinders.

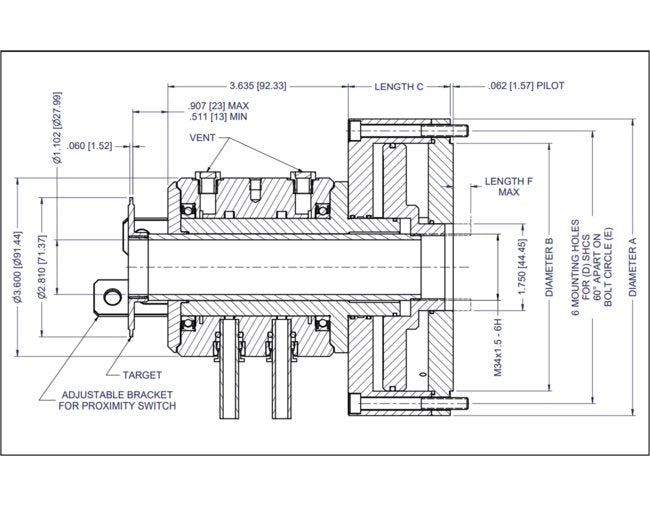

Specifications A Dimension
5.980 in | 151.89 mm
Specifications B Dimension
4.995 in | 126.87 mm
Specifications C Dimension
2.053 in | 52.15 mm
Specifications Draw Tube Force
1,640 lbf | 745 kgf
Specifications D Dimension
M6
Specifications E Dimension
5.500 in | 139.70 mm
Specifications F Dimension
.500 in | 12.7 mm
Specifications Item No
32 060 060
Specifications Max Air Pressure
150 psi | 10.5 kg/cm²
Specifications Max Rpm
10,000
Specifications Piston Stroke
.394 in | 10 mm
Specifications Size
6 in | 152 mm
Specifications Through Hole
1.102 in | 28 mm
Specifications Weight
12 lb | 5.5 kg
