MicroCentric LDN/RE Through Hole Air Cylinder with Stroke Control
$749.99
Quantity: 1
Claim Your Seller Account
MicroCentric LDN/RE Through Hole Air Cylinder with Stroke Control
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

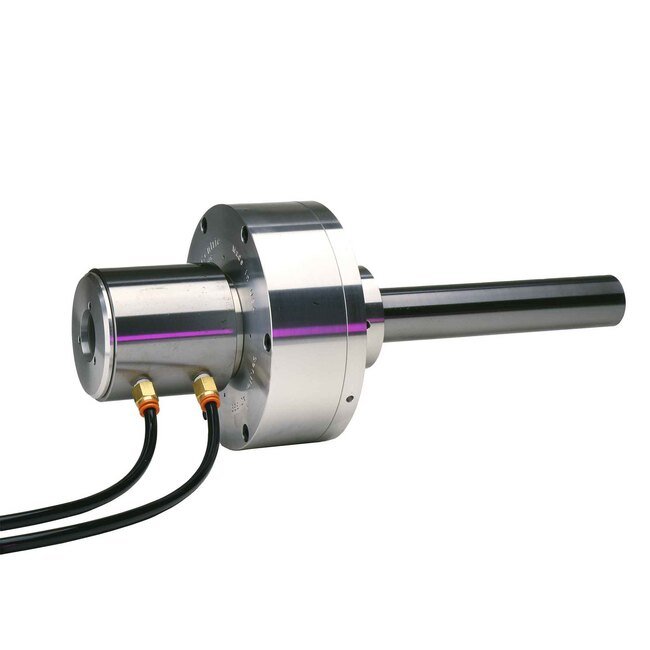

The MicroCentric LDN/RE Through Hole Air Cylinder with Stroke Control offers precision clamping for industrial applications, featuring a sealed air bearing assembly with high-speed bearings. With sizes ranging from 6 to 10 inches and a 1.102-inch through hole, this cylinder provides adjustable draw tube force of 5,200 lbf to prevent workpiece distortion. Maintenance-free and capable of speeds up to 6,000 rpm, this cylinder ensures reliable performance across various machine spindle and rotary table configurations.
Product Specifications
Air Cylinder Options Check Valves
Special LDZ Cylinders are avail able with integral check valves. Check valves will maintain air pressure in the cylinder and keep the chuck or workholding fixture clamped in the event there is an interruption to the air supply. Contact our sales engineers for information on LDZ Cylinders with check valves.
Air Cylinder Options Mounting Plates Draw Tubes
Spindle mounting plates and draw tubes to adapt LDZ Air Cylinders to a specific machine spindle or rotary table are quoted on request.
Air Cylinder Options Proximity Switches
A proximity switch kit is available for most LDZ Cylinders. Proximity switches provide a signal to the machine control to confirm whether the chuck or workholding fixture is clamped or unclamped. Contact our sales engineers for information on proximity switch kits for LDZ Cylinders.

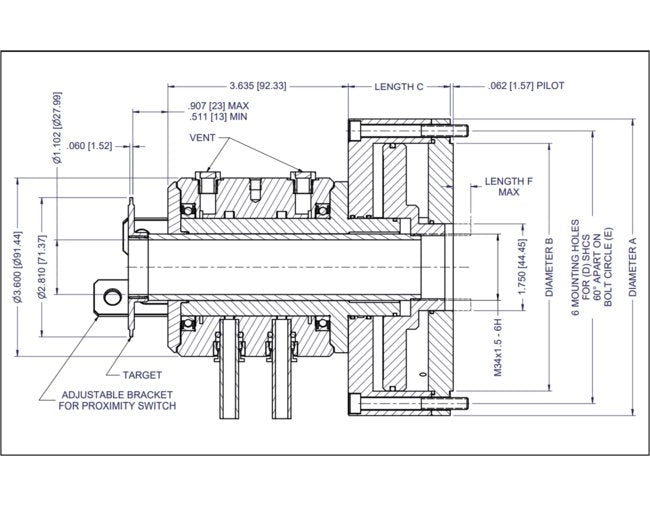

Specifications A Dimension
10.000 in | 254 mm
Specifications B Dimension
8.495 in | 215.77 mm
Specifications C Dimension
3.186 in | 80.92 mm
Specifications Draw Tube Force
5,200 lbf | 2,364 kgf
Specifications D Dimension
M8
Specifications E Dimension
9.250 in | 234.95 mm
Specifications F Dimension
.355 in | 9 mm
Specifications Item No
32 100 005
Specifications Max Air Pressure
150 psi | 10.5 kg/cm²
Specifications Max Rpm
4,000
Specifications Piston Stroke
.710 in | 18 mm
Specifications Size
10 in | 254 mm
Specifications Through Hole
1.102 in | 28 mm
Specifications Weight
32 lb | 14.5 kg
