High-performance LDN Standard Air Cylinders for precise clamping force adjustment, ideal for preventing workpiece distortion. Available in 6, 8, and 10-inch models.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
MicroCentric LDN Standard Air Cylinders
$749.99
Quantity: 1
Claim Your Seller Account
MicroCentric LDN Standard Air Cylinders
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

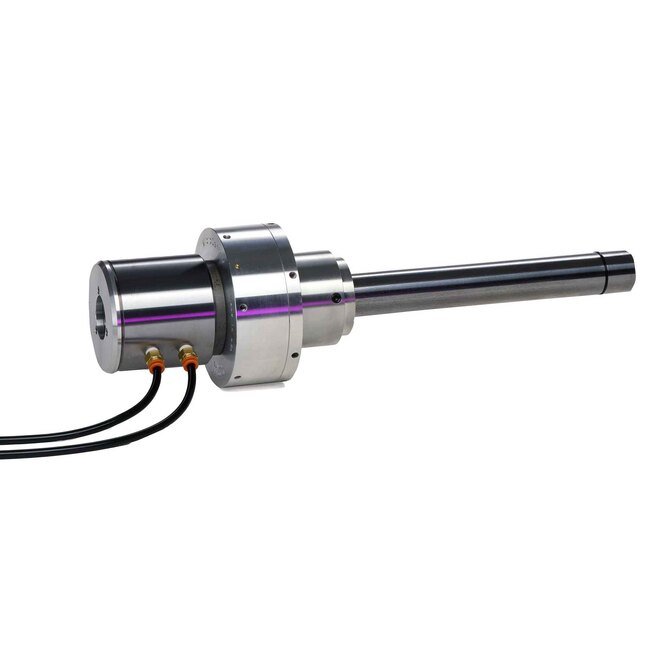

The MicroCentric LDN Standard Air Cylinders are precision-engineered air cylinders designed for fine adjustment of draw tube force, preventing workpiece distortion during clamping. With available diameters of 6, 8, and 10 inches, a through hole size of 1.102 inches, clamping force up to 5,200 lbs, and speeds reaching 6,000 rpm, these air cylinders offer unmatched performance and reliability. They feature a maintenance-free sealed design air bearing assembly with high-speed sealed bearings, ensuring precision and durability in various machining applications.
Product Specifications
Air Cylinder Options Check Valves
Special LDN Cylinders are avail able with integral check valves. Check valves will maintain air pressure in the cylinder and keep the chuck or workholding fixture clamped in the event there is an interruption to the air supply.Contact our sales engineers for information on LDN Cylinders with check valves.
Air Cylinder Options Mounting Plates Draw Tubes
Spindle mounting plates and draw tubes to adapt LDN Air Cylinders to a specific machine spindle or rotary table are quoted on request.
Air Cylinder Options Proximity Switches
A proximity switch kit is available for most LDN Cylinders. Proximity switches provide a signal to the machine control to confirm whether the chuck or workholding fixture is clamped or unclamped.Contact our sales engineers for information on proximity switch kits for LDN Cylinders.

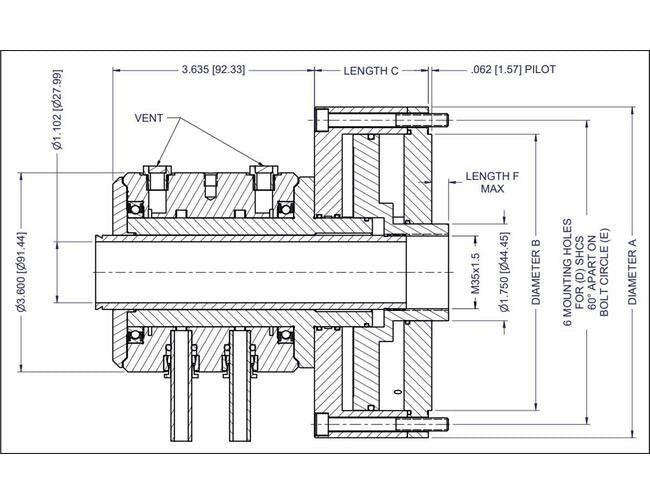

Specifications A Dimension
5.980 in | 151.89 mm
Specifications B Dimension
4.995 in | 126.87 mm
Specifications C Dimension
2.053 in | 52.1 mm
Specifications Draw Tube Force
1,640 lbf | 745 kgf
Specifications D Dimension
M6
Specifications E Dimension
5.500 in | 139.7 mm
Specifications F Dimension
.500 in
Specifications Item No
32 060 072
Specifications Max Air Pressure
150 psi | 10.5 kg/cm²
Specifications Max Rpm
6,000
Specifications Piston Stroke
.394 in | 10 mm
Specifications Size
6 in | 152 mm
Specifications Through Hole
1.102 in | 28 mm
Specifications Weight
12 lb | 5.5 kg
