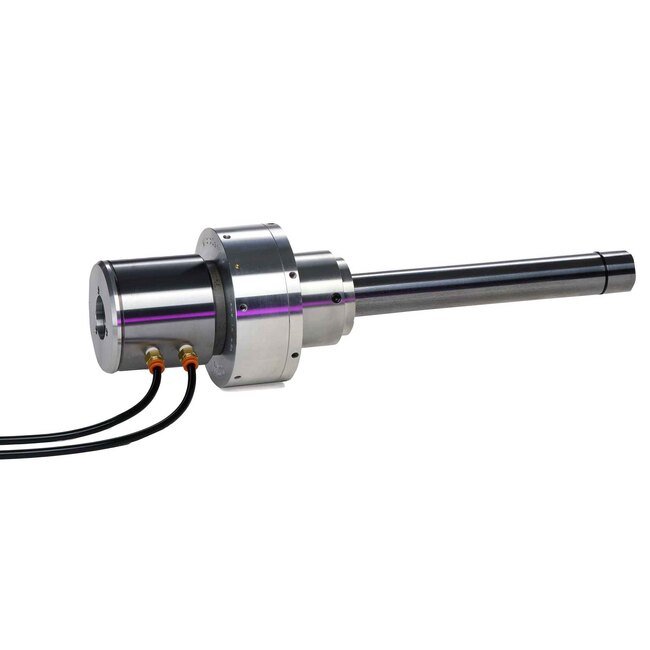

The MicroCentric LDN Standard Through Hole Air Cylinders are precision-engineered for exceptional performance and reliability. Available in 6, 8, and 10-inch diameter models with a through hole of 1.102 inches, these air cylinders can exert clamping forces of up to 5,200 lbs, making them ideal for a wide range of industrial applications. With a maintenance-free design and high-speed sealed bearings, these cylinders ensure precise clamping force adjustments to prevent workpiece distortion. Additionally, options like proximity switches and integral check valves enhance operational efficiency and safety.
Product Specifications
Air Cylinder Options Check Valves
Special LDN Cylinders are avail able with integral check valves. Check valves will maintain air pressure in the cylinder and keep the chuck or workholding fixture clamped in the event there is an interruption to the air supply.Contact our sales engineers for information on LDN Cylinders with check valves.
Air Cylinder Options Mounting Plates Draw Tubes
Spindle mounting plates and draw tubes to adapt LDN Air Cylinders to a specific machine spindle or rotary table are quoted on request.
Air Cylinder Options Proximity Switches
A proximity switch kit is available for most LDN Cylinders. Proximity switches provide a signal to the machine control to confirm whether the chuck or workholding fixture is clamped or unclamped.Contact our sales engineers for information on proximity switch kits for LDN Cylinders.

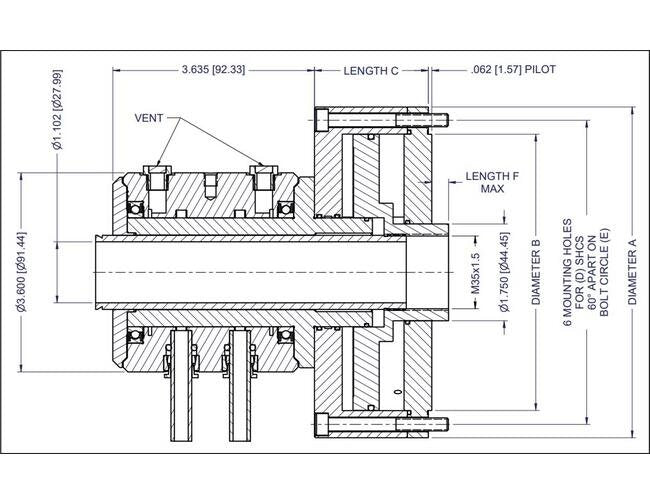

Specifications A Dimension
7,980 in | 202.69 mm
Specifications B Dimension
6.495 in | 164.97 mm
Specifications C Dimension
3.186 in | 80.92 mm
Specifications Draw Tube Force
2,920 lbf | 1,327 kgf
Specifications D Dimension
M8
Specifications E Dimension
7.250 in | 184.2 mm
Specifications F Dimension
.355 in | 9 mm
Specifications Item No
32 080 027
Specifications Max Air Pressure
150 psi | 10.5 kg/cm²
Specifications Max Rpm
5,000
Specifications Piston Stroke
.710 in | 18 mm
Specifications Size
8 in | 203 mm
Specifications Through Hole
1.102 in | 28 mm
Specifications Weight
23 lb | 10.5 kg
