MicroCentric Precision Blank Top Jaws for 6 inch Chuck

Name: MicroCentric Precision Blank Top Jaws for 6 inch Chuck
Brand: MicroCentric Corp.
SKU: PRE-863892
Price: 49.99 USD
Availability: OutOfStock

SKU:PRE-863892

Achieve precision clamping with top-quality MicroCentric Precision Blank Top Jaws for 6 inch chucks. Customizable for diverse materials & configurations.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience precision and reliability with MicroCentric Precision Blank Top Jaws designed for close tolerances, ensuring a proper fit onto MicroCentric chucks. These jaw blanks, made of 1018 steel, are meticulously machined under load to customize for the workpiece being clamped. Carburization post rough machining enhances durability, while customization options are available for various configurations and materials. For tailored solutions, MicroCentric offers designing and manufacturing of custom top jaws optimized for specific workpiece and machine applications.

Product Specifications

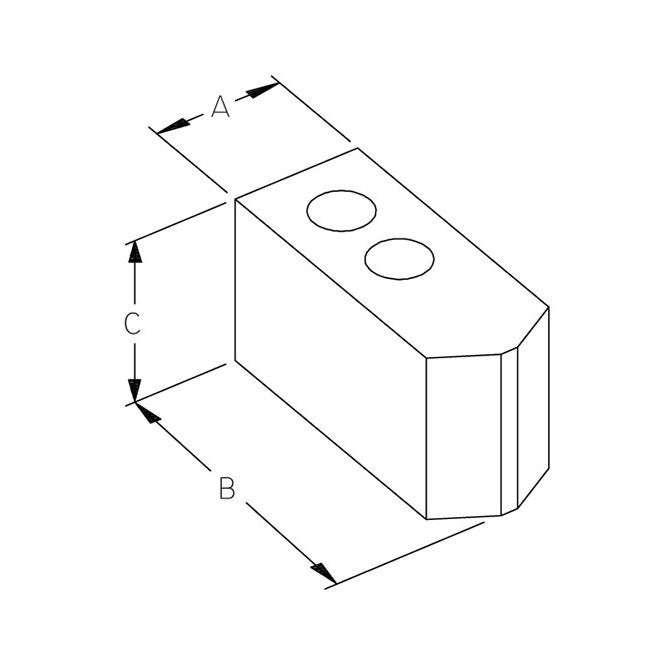

Specifications A Dimension

1.00 in | 25.4 mm

Specifications B Dimension

2.96 in | 75.2 mm

Specifications Chuck

6 inch | HST6

Specifications C Dimension

3.00 in | 76.2 mm

Specifications Item No

07 065 300

Specifications Material

1018

Specifications Weight

2.2 lb | 1.00 kg

MicroCentric Precision Blank Top Jaws for 6 inch Chuck
