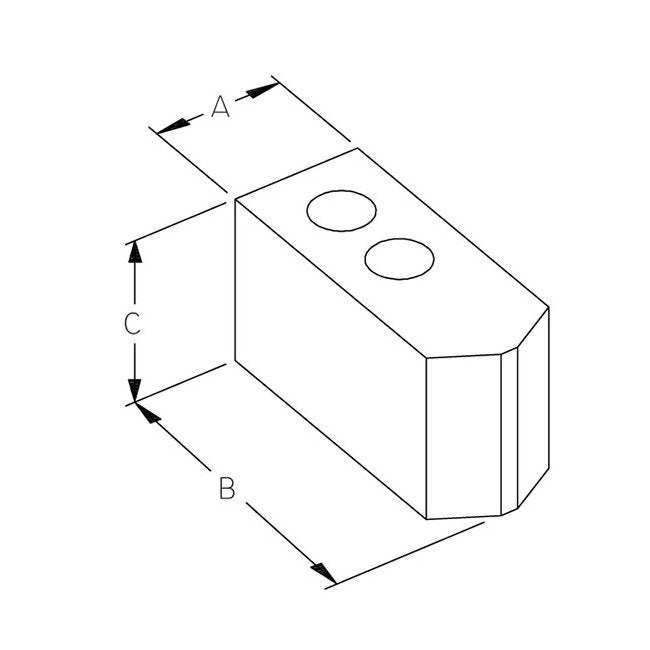

The MicroCentric Precision Blank Top Jaws are meticulously crafted to fit snugly onto MicroCentric chucks, ensuring precise clamping for your workpieces. These steel jaw blanks, featuring a Chuck Size of 6 inches and made of high-quality 1018 steel, undergo carburizing and finishing grinding processes to meet exacting standards. With dimensions of A: 1.00 in, B: 2.96 in, and C: 1.50 in, these jaws weigh 1.1 lb each. Tailor-made for versatility, they can be customized for specific workpiece and machine requirements. Reach out to our sales team for more information on materials, configurations, and custom options.
Product Specifications
Specifications A Dimension
1.00 in | 25.4 mm
Specifications B Dimension
2.96 in | 75.2 mm
Specifications Chuck
6 inch | HST6
Specifications C Dimension
1.50 in | 38.1 mm
Specifications Item No
07 065 150
Specifications Material
1018
Specifications Weight
1.1 lb | 0.50 kg
