MicroCentric Rotating Air Tubes
MicroCentric Rotating Air Tubes
SKU:PRE-71ad53
Upgrade precision operations with MicroCentric Rotating Air Tubes for MicroCentric air chucks. Includes air hoses, fittings, and customizable lengths.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
MicroCentric Rotating Air Tubes
$149.99
Quantity: 1
Claim Your Seller Account
MicroCentric Rotating Air Tubes
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

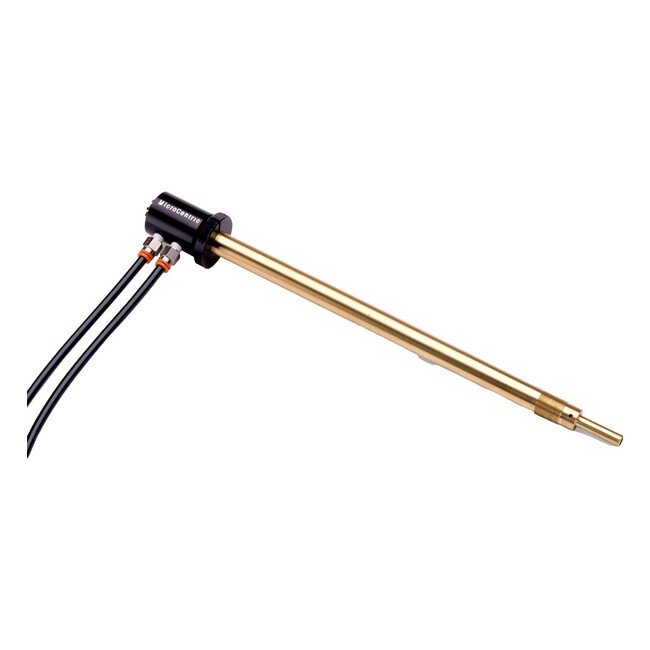

Enhance your precision operations with our MicroCentric Rotating Air Tubes. Designed for use with MicroCentric air chucks, these air tube assemblies feature a robust rotary air coupling with a hardened steel journal and maintenance-free oil-lite bearing. The package includes a blank support bushing, air hoses, and fittings, ensuring seamless integration into your systems. With specific dimensional details and a maximum speed of 6,000 RPM, these rotating air tubes can be tailored to your exact requirements. Consult our sales department for expert assistance in determining the perfect length for your application.
Product Specifications

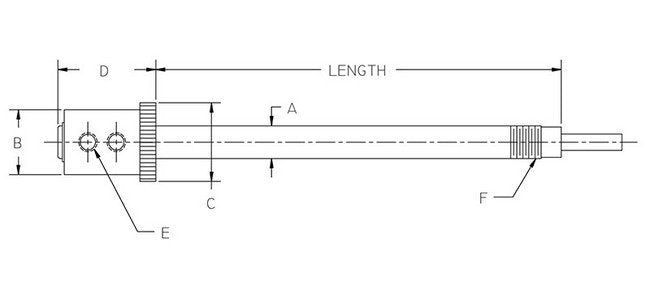

Specifications A Dimension
.625 in | 15.9 mm
Specifications B Dimension
1.24 in | 1.24 mm
Specifications Chucks Used With
3-50C, 4 & 6 inch, & HST models
Specifications C Dimension
1.50 in | 38.1 mm
Specifications D Dimension
2.21 in | 56.1 mm
Specifications E Dimension
1/16"-27 NPT
Specifications F Dimension
5/8"-32 UNF
Specifications Item No
09 040 000X
Specifications Max Speed
6,000
Specifications Ordering Information
Length of air tube to be specified when ordering.
