MicroCentric Rotating Air Tubes for 8-16 Inch Chucks
MicroCentric Rotating Air Tubes for 8-16 Inch Chucks
SKU:PRE-f4be1a
Enhance machining precision with MicroCentric Rotating Air Tubes; durable, high-speed rotary assemblies for 8-16 inch chucks.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MicroCentric Rotating Air Tubes for 8-16 Inch Chucks
$299.99
Quantity: 1
Claim Your Seller Account
MicroCentric Rotating Air Tubes for 8-16 Inch Chucks
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

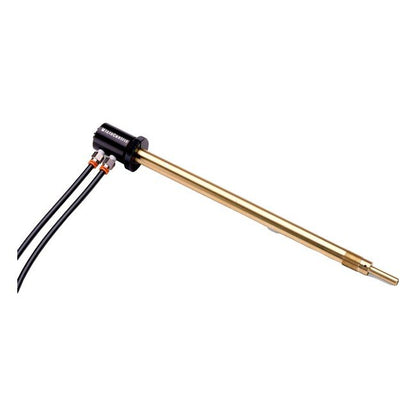

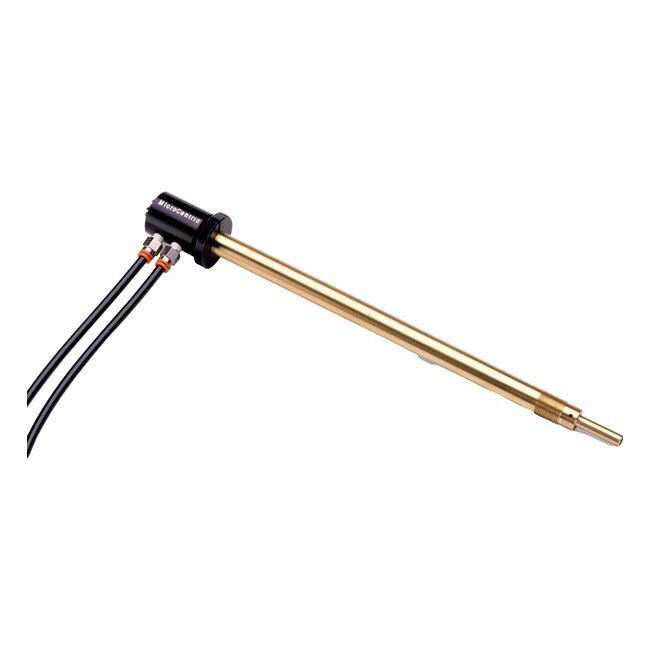

The MicroCentric Rotating Air Tubes are precision-crafted assemblies designed for optimal performance with MicroCentric air chucks. Featuring a hardened steel journal and maintenance-free oil-lite bearing, these rotary air tubes ensure durability and smooth operation. Each set includes a blank support bushing, air hoses, and fittings for seamless integration. With dimensions meeting industry standards and a maximum speed of 4,000 RPM, these air tubes offer reliability and precision in machining applications. Contact us today for tailored assistance in selecting the perfect length for your specific requirements.

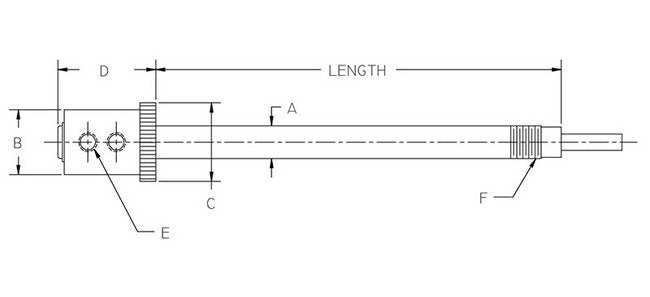

Product Specifications
Specifications A Dimension
1.00 in | 25.4 mm
Specifications B Dimension
2.50 in | 2.50 mm
Specifications Chucks Used With
8 to 16 inch models
Specifications C Dimension
2.75 in | 69.9 mm
Specifications D Dimension
4.85 in | 123.2 mm
Specifications E Dimension
1/4"-18 NPT
Specifications F Dimension
1.0"-24 UNF
Specifications Item No
09 088 000X
Specifications Max Speed
4,000
Specifications Ordering Information
Length of air tube to be specified when ordering.
