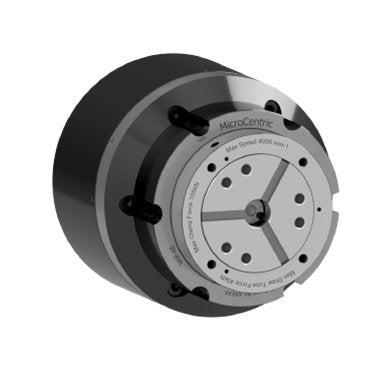

MicroCentric WSF Collet Chucks - Retractable Design
MicroCentric WSF Collet Chucks - Retractable Design
SKU:QUI-b71071
Achieve precise machining with the MicroCentric WSF Collet Chuck - Retractable Design. Maximize accuracy and productivity with ease.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
MicroCentric WSF Collet Chucks - Retractable Design
$2,399.99
Quantity: 1
Claim Your Seller Account
MicroCentric WSF Collet Chucks - Retractable Design
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MicroCentric WSF Collet Chuck with a retractable design is ideal for machining shafts complete between centers. Featuring a face driver for efficient shaft turning and radial adjusting screws for precise assembly, this chuck ensures high accuracy and durability. With a max clamping diameter of 2.625 inches, a linear chuck stroke of 1.080 inches, and a robust max clamp force of 23,605 lbs, it offers exceptional performance for industrial applications.
Product Specifications

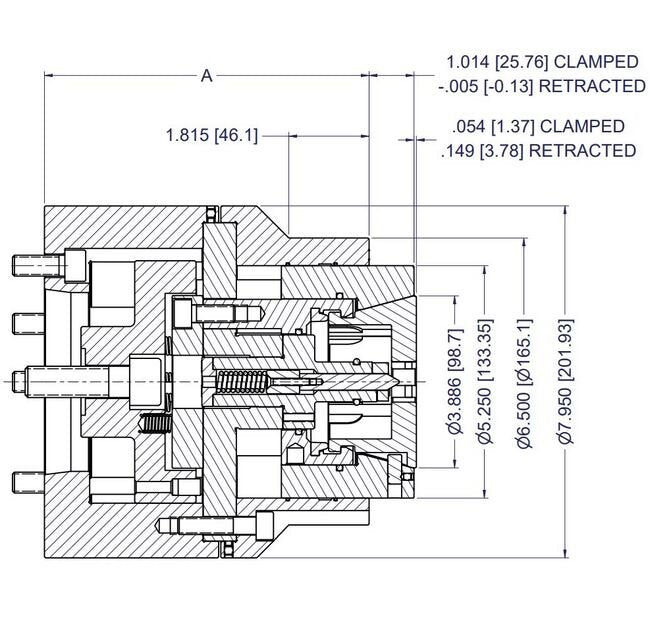

Specifications A Dimension
7.335 in | 186.31 mm
Specifications Clamping Range
+/- .020 in | 0.5 mm
Specifications Collet Model
65BZI
Specifications Item No
15 065 190
Specifications Linear Chuck Stroke
1.080 in | 27.43 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Speed
4,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-6
Specifications Weight
78.47 lb | 35.59 kg
