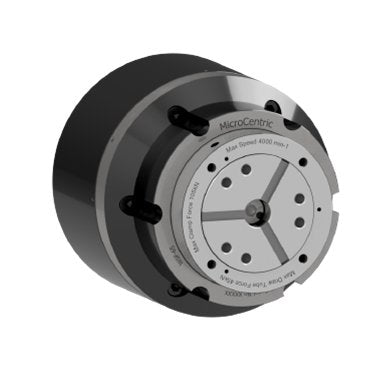

MicroCentric WSF Retractable Collet Chuck
MicroCentric WSF Retractable Collet Chuck
SKU:QUI-1be17b
Enhance shaft machining precision with the MicroCentric WSF Retractable Collet Chuck, featuring innovative design and exceptional accuracy.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
MicroCentric WSF Retractable Collet Chuck
$2,899.99
Quantity: 1
Claim Your Seller Account
MicroCentric WSF Retractable Collet Chuck
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MicroCentric WSF Retractable Collet Chuck revolutionizes shaft machining with its innovative design. Featuring a face driver for efficient shaft turning and radial adjusting screws for precision alignment within .0002 inches, this collet chuck ensures superior accuracy and longevity. With a Max. Clamping Diameter of 4.000 inches, Min. Clamping Diameter of 1.000 inches, and a Max. Clamp Force of 33,721 lbs, it offers exceptional versatility and strength for completing machining tasks to the highest standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

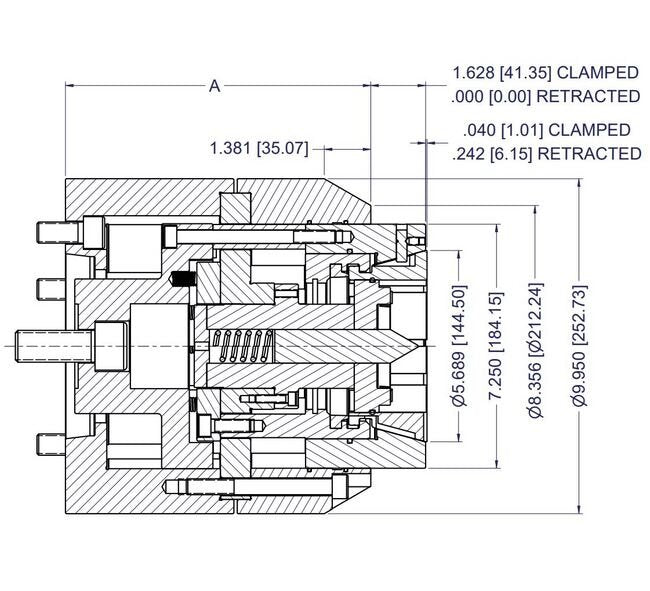

Specifications A Dimension
9.065 in | 230.25 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
100BZI
Specifications Item No
15 100 181
Specifications Linear Chuck Stroke
1.750 in | 44.45 mm
Specifications Max Clamping Diameter
4.000 in | 100 mm
Specifications Max Clamp Force
33,721 lbs | 150 kN
Specifications Max Speed
3,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-8
Specifications Weight
165.84 lb | 75.21 kg
