MicroCentric WSF Retractable Collet Chuck
MicroCentric WSF Retractable Collet Chuck
SKU:QUI-58ba40
Achieve precise shaft machining with the MicroCentric WSF Retractable Collet Chuck. Radial adjusting screws, hardened components, and high accuracy make it a top choice for machining operations.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
MicroCentric WSF Retractable Collet Chuck
$2,499.99
Quantity: 1
Claim Your Seller Account
MicroCentric WSF Retractable Collet Chuck
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

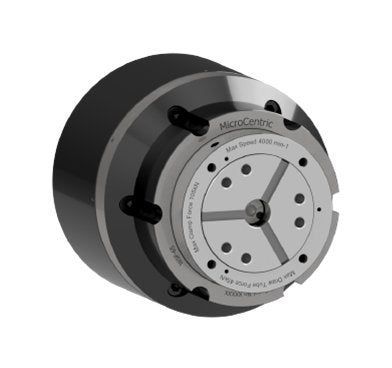

The MicroCentric WSF Retractable Collet Chuck offers precision machining capabilities, allowing shafts to be machined between centers with utmost accuracy. Its retractable design, combined with the face driver mounting in the chuck assembly, facilitates seamless turning of shaft ends. This chuck features radial adjusting screws for precise alignment within 0.0002 inches, ensuring the highest level of accuracy. With all components hardened and precision ground, it guarantees long-term durability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

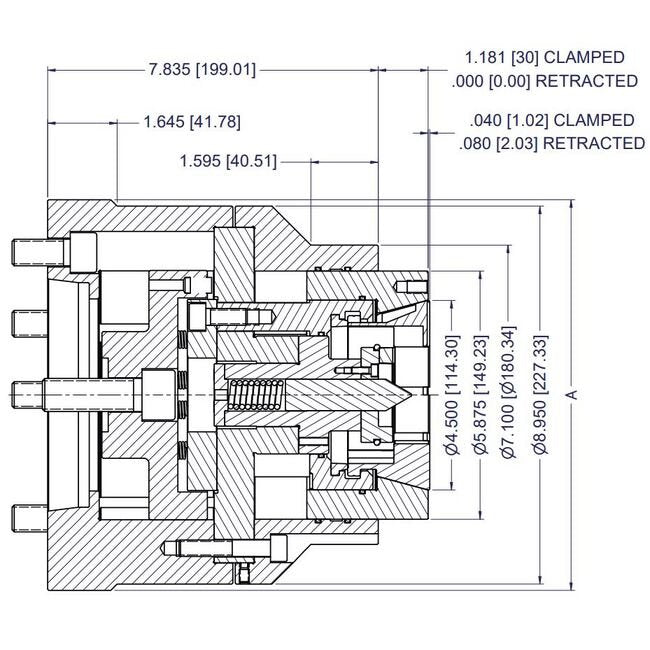

Specifications A Dimension
9.25 in | 234.95 mm
Specifications Clamping Range
+/- .020 in | 0.5 mm
Specifications Collet Model
80BZI
Specifications Item No
15 065 451
Specifications Linear Chuck Stroke
1.341 in | 34.06 mm
Specifications Max Clamping Diameter
3.250 in | 82.5 mm
Specifications Max Clamp Force
25,853 lbs | 115 kN
Specifications Max Speed
3,500 rpm
Specifications Min Clamping Diameter
0.500 in | 12 mm
Specifications Spindle Nose
A2-8
Specifications Weight
104.09 lb | 47.21 kg
