MicroCentric WSF Retractable Collet Chuck - Precision Machining Tool
MicroCentric WSF Retractable Collet Chuck - Precision Machining Tool
SKU:QUI-352516
Achieve precision machining with the MicroCentric WSF Retractable Collet Chuck. Ideal for completing shafts with accuracy and efficiency.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
MicroCentric WSF Retractable Collet Chuck - Precision Machining Tool
$2,499.99
Quantity: 1
Claim Your Seller Account
MicroCentric WSF Retractable Collet Chuck - Precision Machining Tool
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MicroCentric WSF Retractable Collet Chuck offers precision machining capabilities for completing shafts between centers. Featuring a retractable design, this collet chuck allows for face driver mounting, radial adjusting screws for precise alignment within .0002 inches, and hardened, precision-ground components for superior accuracy and longevity. With a clamping range of +/- .040 inches, max clamp force of 33,721 lbs, and maximum speed of 3,000 rpm, this tool ensures optimal performance and efficiency in machining operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

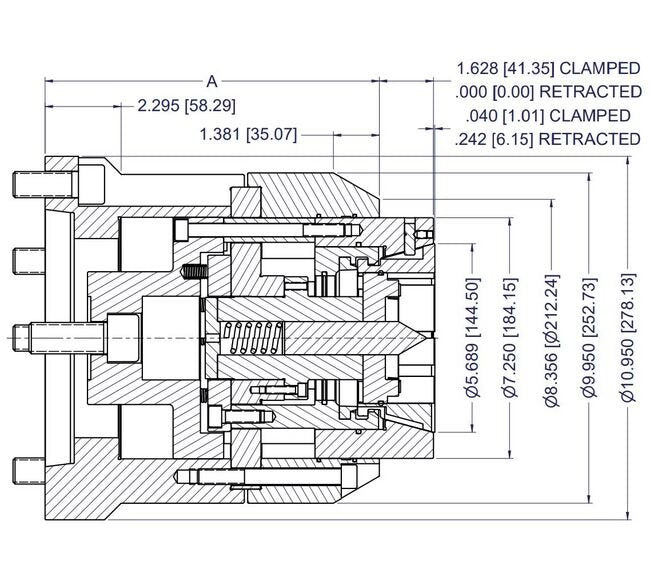

Specifications A Dimension
10.065 in | 255.65 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
100BZI
Specifications Item No
15 100 180
Specifications Linear Chuck Stroke
1.750 in | 44.45 mm
Specifications Max Clamping Diameter
4.000 in | 100 mm
Specifications Max Clamp Force
33,721 lbs | 150 kN
Specifications Max Speed
3,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-11
Specifications Weight
174.96 lb | 79.35 kg
