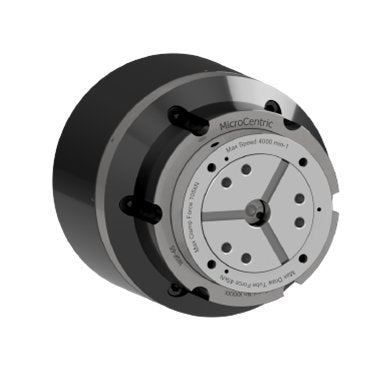

MicroCentric WSF Retractable Collet Chucks
MicroCentric WSF Retractable Collet Chucks
SKU:QUI-ec4a06
Achieve precision machining with MicroCentric's WSF Retractable Collet Chucks. Designed for complete shaft machining with high accuracy and durability.
Regular price
$2,699.99
Regular price
Sale price
$2,699.99
Unit price
per
Initiate Order
MicroCentric WSF Retractable Collet Chucks
$2,699.99
Quantity: 1
Claim Your Seller Account
MicroCentric WSF Retractable Collet Chucks
$2,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precision machining with MicroCentric's WSF Retractable Collet Chucks. This innovative design allows for complete shaft machining between centers. With features like radial adjusting screws for utmost accuracy, hardened components for durability, and a maximum clamp force of 23,605 lbs, these chucks ensure high performance and long life. Ideal for institutional and government procurement needs, meeting strict industry standards.

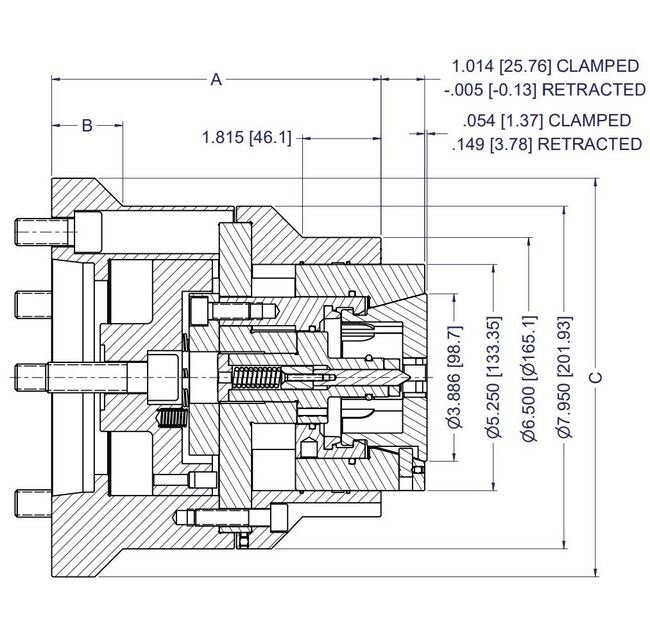

Product Specifications
Specifications A Dimension
7.635 in | 193.93 mm
Specifications B Dimension
1.65 in | 41.91 mm
Specifications Clamping Range
+/- .020 in | 0.5 mm
Specifications Collet Model
65BZI
Specifications C Dimension
9.25 in | 234.95 mm
Specifications Item No
15 065 191
Specifications Linear Chuck Stroke
1.080 in | 27.43 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Speed
4,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-8
Specifications Weight
82.2 lb | 37.28 kg
