Achieve precise and efficient shaft machining with the MicroCentric WSF Retractable Collet Chuck. Radial adjusting screws ensure .0002' alignment, offering high accuracy and durability for industrial applications.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
MicroCentric WSF Retractable Collet Chucks
$1,299.99
Quantity: 1
Claim Your Seller Account
MicroCentric WSF Retractable Collet Chucks
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

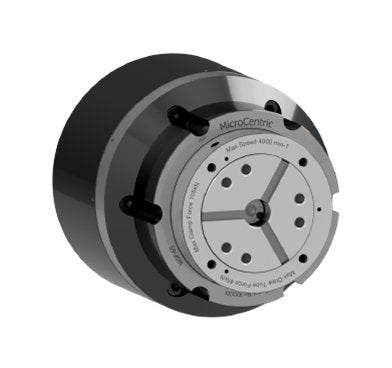

The MicroCentric WSF Retractable Collet Chuck allows for complete machining between centers with precision and efficiency. Its retractable design features a face driver mounted inside the chuck for seamless shaft driving and turning operations. With radial adjusting screws ensuring chuck assembly alignment within .0002 inches, this collet chuck offers high accuracy and durability. Hardened and precision ground components ensure long-lasting performance, making it ideal for industrial applications requiring superior clamping force and precise machining.
Product Specifications

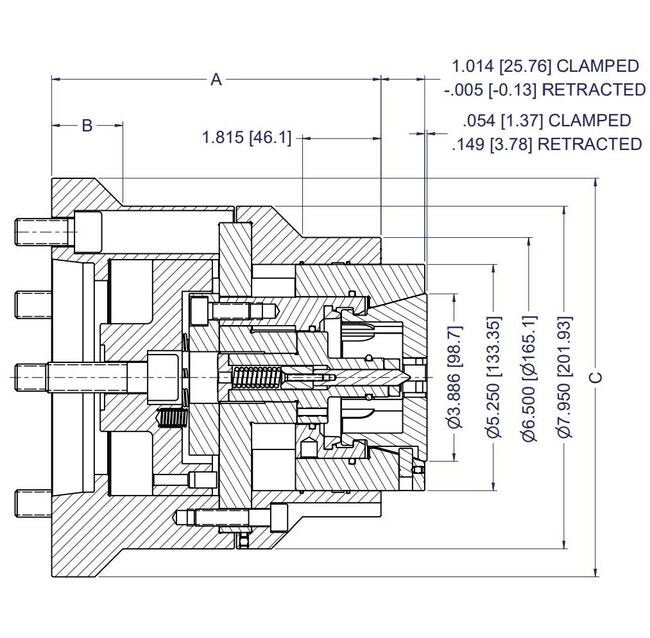

Specifications A Dimension
7.4 in | 187.96 mm
Specifications B Dimension
2.405 in | 61.09 mm
Specifications Clamping Range
+/- .020 in | 0.5 mm
Specifications Collet Model
65BZI
Specifications C Dimension
10.95 in | 278.13 mm
Specifications Item No
15 065 192
Specifications Linear Chuck Stroke
1.080 in | 27.43 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Speed
4,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-11
Specifications Weight
95.6 lb | 43.36 kg
