MicroCentric WSF Retractable Collet Chucks
MicroCentric WSF Retractable Collet Chucks
SKU:QUI-463e59
Achieve precision machining with the MicroCentric WSF Retractable Collet Chuck - perfect for secure and accurate turning operations.
Regular price
$3,899.99
Regular price
Sale price
$3,899.99
Unit price
per
Initiate Order
MicroCentric WSF Retractable Collet Chucks
$3,899.99
Quantity: 1
Claim Your Seller Account
MicroCentric WSF Retractable Collet Chucks
$3,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

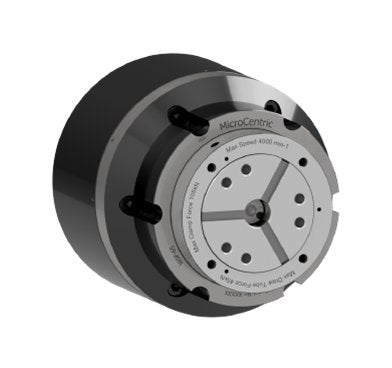

The MicroCentric WSF Retractable Collet Chuck offers precision machining capability, allowing shafts to be machined complete with ease. Featuring a retractable design, this chuck ensures secure clamping for OD machining while supporting turning operations. Equipped with radial adjusting screws for impeccable assembly alignment within 0.0002 inches, this chuck is hardened and precision-ground for unparalleled accuracy and durability. With specifications like a Max. Clamp Force of 25,853 lbs and Max. Speed of 3,500 rpm, this collet chuck guarantees high performance and reliability, meeting the stringent demands of industrial operations.
Product Specifications

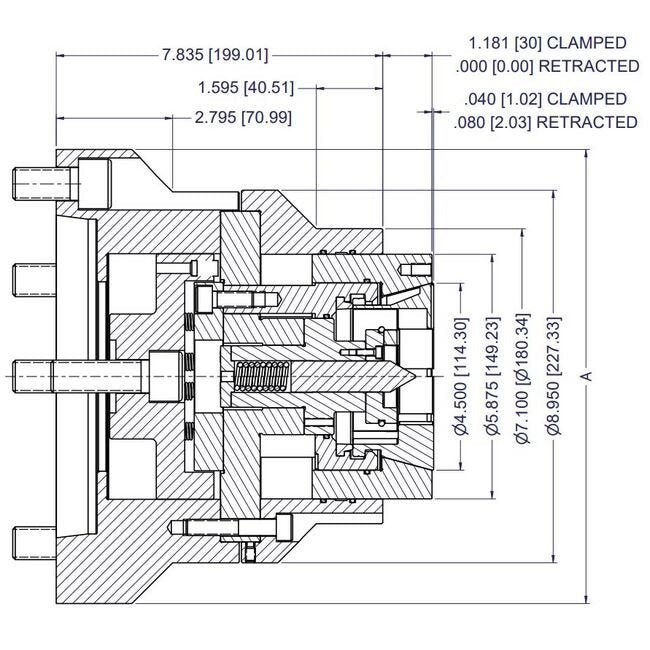

Specifications A Dimension
10.908 in | 277.05 mm
Specifications Clamping Range
+/- .020 in | 0.5 mm
Specifications Collet Model
80BZI
Specifications Item No
15 080 452
Specifications Linear Chuck Stroke
1.341 in | 34.06 mm
Specifications Max Clamping Diameter
3.250 in | 82.5 mm
Specifications Max Clamp Force
25,853 lbs | 115 kN
Specifications Max Speed
3,500 rpm
Specifications Min Clamping Diameter
0.500 in | 12 mm
Specifications Spindle Nose
A2-11
Specifications Weight
115.59 lb | 52.42 kg
