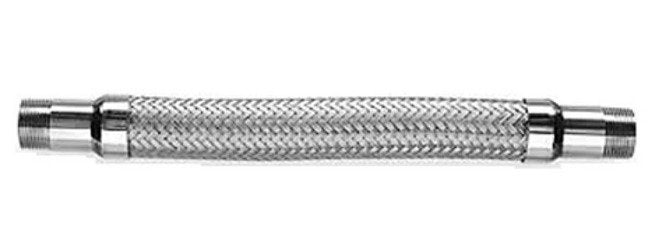

Microflex 1-1/2 in Flexible Metal Hose Assemblies

Name: Microflex 1-1/2 in Flexible Metal Hose Assemblies
Brand: Marcuse & Son, Inc.
SKU: MIC-fb0150
Price: 99.99 USD
Availability: OutOfStock

SKU:MIC-fb0150

Enhance industrial fluid transfers with Microflex 1-1/2 in Flexible Metal Hose Assemblies. Durable carbon steel construction, 550 psi max pressure, ideal for high-temp applications.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your industrial fluid transfer systems with the Microflex 1-1/2 inch Flexible Metal Hose Assemblies. These premium hoses feature durable carbon steel male threaded end connections, ensuring reliable performance even at temperatures up to 1500 ºF. With a maximum working pressure of 550 psi at 200 ºF and a static bend radius of 2-1/2 inches, these hoses are designed for high-pressure applications. The correction factors provided for stainless steel at various temperatures ensure accurate pressure adjustment as per operational needs, making these hoses a versatile and dependable choice for demanding environments.

Product Specifications

Correction Factors For Elevated Temperatures 0

As the operating temperatures of a hose assembly increases, the maximum working pressure decreases. Pressure ratings in the data section of this catalog are valid at 70 ºF. For operating temperatures in excess of 70 ºF the maximum working pressure must be decreased according to the Correction Factors chart listed below.

Note 0

Determine maximum operating temperature.Locate appropriate correction factor on chart.Multiply correction (actor by maximum working pressure (MWP) at 70 ºF specified for desired product.

Specifications Brand

Microflex

Specifications Correction Factor For Stainless Steel At 1000 F

0.60

Specifications Correction Factor For Stainless Steel At 1100 F

0.58

Specifications Correction Factor For Stainless Steel At 1200 F

0.55

Specifications Correction Factor For Stainless Steel At 1300 F

0.50

Specifications Correction Factor For Stainless Steel At 1400 F

0.44

Specifications Correction Factor For Stainless Steel At 1500 F

0.40

Specifications Correction Factor For Stainless Steel At 150 F

0.97

Specifications Correction Factor For Stainless Steel At 200 F

0.94

Specifications Correction Factor For Stainless Steel At 250 F

0.92

Specifications Correction Factor For Stainless Steel At 300 F

0.88

Specifications Correction Factor For Stainless Steel At 350 F

0.86

Specifications Correction Factor For Stainless Steel At 400 F

0.83

Specifications Correction Factor For Stainless Steel At 450 F

0.81

Specifications Correction Factor For Stainless Steel At 500 F

0.78

Specifications Correction Factor For Stainless Steel At 600 F

0.74

Specifications Correction Factor For Stainless Steel At 70 F

1.00

Specifications Correction Factor For Stainless Steel At 800 F

0.66

Specifications Correction Factor For Stainless Steel At 900 F

0.62

Specifications Material

Carbon Steel

Specifications Maximum Working Pressure At 200 F

550 psi

Specifications Maximum Working Temperature

1500 ºF

Specifications Over All Length

12 in

Specifications Size

1-1/2 in

Specifications Static Bend

2-1/2 in

Microflex 1-1/2 in Flexible Metal Hose Assemblies
