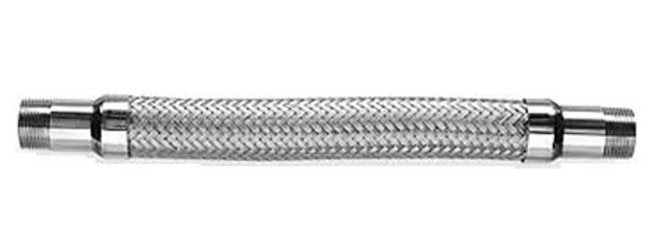

Microflex 2-1/2 Inch Flexible Metal Hose Assembly with Carbon Steel Male Threaded Ends
Microflex 2-1/2 Inch Flexible Metal Hose Assembly with Carbon Steel Male Threaded Ends
SKU:MIC-52d027
Enhance your industrial piping with Microflex's 2-1/2 in Flexible Metal Hose Assembly for high-temp applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Microflex 2-1/2 Inch Flexible Metal Hose Assembly with Carbon Steel Male Threaded Ends
$89.99
Quantity: 1
Claim Your Seller Account
Microflex 2-1/2 Inch Flexible Metal Hose Assembly with Carbon Steel Male Threaded Ends
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial piping with the Microflex 2-1/2 Inch Flexible Metal Hose Assembly. Featuring carbon steel male threaded end connections, this hose boasts a maximum working temperature of 1500 ºF and a maximum working pressure of 420 psi at 200 ºF. With a static bend of 4-1/8 inches and an overall length of 12 inches, this hose offers durability and reliability for high-temperature applications. Compliant with industry standards, this hose assembly is designed for superior performance in challenging environments.
Product Specifications
Correction Factors For Elevated Temperatures 0
As the operating temperatures of a hose assembly increases, the maximum working pressure decreases. Pressure ratings in the data section of this catalog are valid at 70 ºF. For operating temperatures in excess of 70 ºF the maximum working pressure must be decreased according to the Correction Factors chart listed below.
Note 0
Determine maximum operating temperature.Locate appropriate correction factor on chart.Multiply correction (actor by maximum working pressure (MWP) at 70 ºF specified for desired product.
Specifications Brand
Microflex
Specifications Correction Factor For Stainless Steel At 1000 F
0.60
Specifications Correction Factor For Stainless Steel At 1100 F
0.58
Specifications Correction Factor For Stainless Steel At 1200 F
0.55
Specifications Correction Factor For Stainless Steel At 1300 F
0.50
Specifications Correction Factor For Stainless Steel At 1400 F
0.44
Specifications Correction Factor For Stainless Steel At 1500 F
0.40
Specifications Correction Factor For Stainless Steel At 150 F
0.97
Specifications Correction Factor For Stainless Steel At 200 F
0.94
Specifications Correction Factor For Stainless Steel At 250 F
0.92
Specifications Correction Factor For Stainless Steel At 300 F
0.88
Specifications Correction Factor For Stainless Steel At 350 F
0.86
Specifications Correction Factor For Stainless Steel At 400 F
0.83
Specifications Correction Factor For Stainless Steel At 450 F
0.81
Specifications Correction Factor For Stainless Steel At 500 F
0.78
Specifications Correction Factor For Stainless Steel At 600 F
0.74
Specifications Correction Factor For Stainless Steel At 70 F
1.00
Specifications Correction Factor For Stainless Steel At 800 F
0.66
Specifications Correction Factor For Stainless Steel At 900 F
0.62
Specifications Material
Carbon Steel
Specifications Maximum Working Pressure At 200 F
420 psi
Specifications Maximum Working Temperature
1500 ºF
Specifications Over All Length
12 in
Specifications Size
2-1/2 in
Specifications Static Bend
4-1/8 in
