MicroPLUS Radio Frequency Access Control System
MicroPLUS Radio Frequency Access Control System
SKU:RAD-825b4d
Enhanced security with MicroPLUS® RF Access Control System for residential, commercial & institutional applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
MicroPLUS Radio Frequency Access Control System
$499.99
Quantity: 1
Claim Your Seller Account
MicroPLUS Radio Frequency Access Control System
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

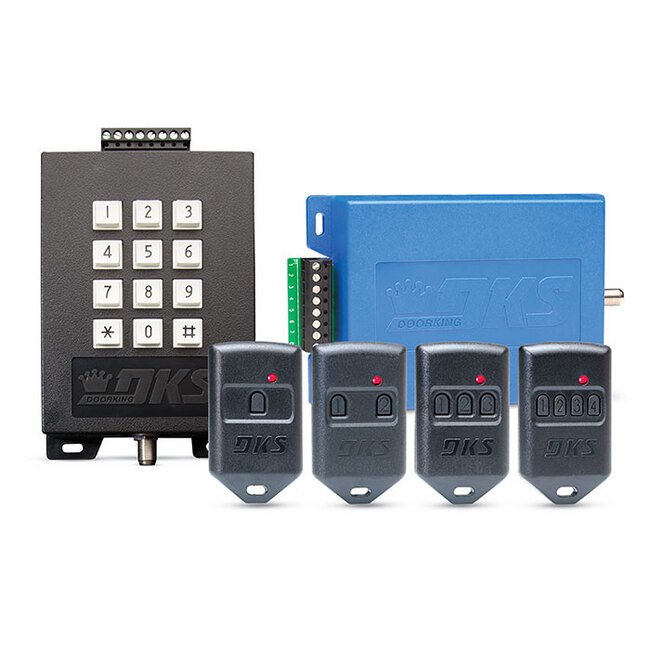

The MicroPLUS® Radio Frequency Access Control System offers the highest level of security with unique coding and encryption schemes to prevent unauthorized duplication. Designed for residential, commercial, and institutional applications, this system features a 8040 Receiver with low-power draw for solar applications, supporting up to 1250 transmitter codes and 10 time zones. With over 286,000,000 transmitter codes available, including encrypted sync codes, it ensures secure access control. It provides remote operation of access gates, integrating RF and card access control with Proximity Card Readers for enhanced security.
Product Specifications
Additional Information Additional Information
DoorKing®âs line of Access Control products is built to deliver customizable, expandable, and user-friendly access points for any property. The result is a robust product line that functions better in real-world use than any other on the market. From complex systems with multiple doors, floors, user groups and more, to a simple stand-alone device for a single elevator, DKS has engineered a customizable range of products to meet the needs of any property. Digital Keypads, RF and Proximity Card Readers, Electric and Magnetic Locks, MicroCLIK® and MicroPLUS® RF Controls, Automated Vehicle ID Systems, and mobile access applications compatible with bluetooth offer any level of security for residential, commercial, and multi-use properties. Higher security is within your reach - with DoorKing® Access Control products.
Advantages Advantages
Provide you with the highest level of security available.Transmitter codes that cannot be duplicated or copied
Applications Applications
Apartment / College Residents HallsApartment Complex / Gated CommunitiesCommercial / IndustrialParkingMaximum SecurityMixed Use BuildingsResidentialSelf Storage
Key Features Key Features
Provides remote operation of vehicular access doors and gates from the safety and convenience of a vehicleMicroPLUS transmitter codes cannot be copied assuring that only the original intended transmitters will activate the access control systemOver 286,000,000 transmitter codes available plus an encrypted "sync" code that changes every time the transmitter is usedPROXmtr⢠includes a built in proximity card with the MicroPLUS transmitter combining both RF and card access control into a single compact unitProvides remote operation of vehicular access gates from the safety and convenience of a vehicleMicroPLUS® transmitter codes cannot be copied assuring that only the original intended transmitters will activate the access control systemOver 286,000,000 transmitter codes available plus an encrypted "sync" code that changes every time the transmitter is usedPROXmtr⢠includes a built in proximity card with the MicroPLUS transmitter combining both RF and card access control into a single compact unitTransmitters available with 1, 2, 3 or 4 buttonsMicroPLUS® RF controls may be used as a stand-alone access control system or can be interfaced with 26, 30 or 31-bit wiegand controllersListingsFCC (US): LSD8059RXFCC (US): LSD8068TDOC (CAN): 1736 102 138
Specifications Alternating Current Ac Power Supply
12 V | 24 V
Specifications Controller Type
Stand-Alone
Specifications Direct Current Dc Power Supply
12 V | 24 V
Specifications Hold Open Capability
No
Specifications Light Emitting Diode Led Beeper
Light Emitting Diode (LED) Only
Specifications Limited Factory Warranty
2 y
Specifications Live Transaction Capability
To Printer
Specifications Maximum Access Points
1
Specifications Maximum Codes
1250
Specifications Output Type
1 Relay
Specifications Programmable Facility Codes
4095
Specifications Range
50 to 75 ft
Specifications Time Zones
10
Specifications Transaction Buffer
2300
Specifications Transmitter Codes
Over 286,000,000
Technical Specifications Technical Specifications

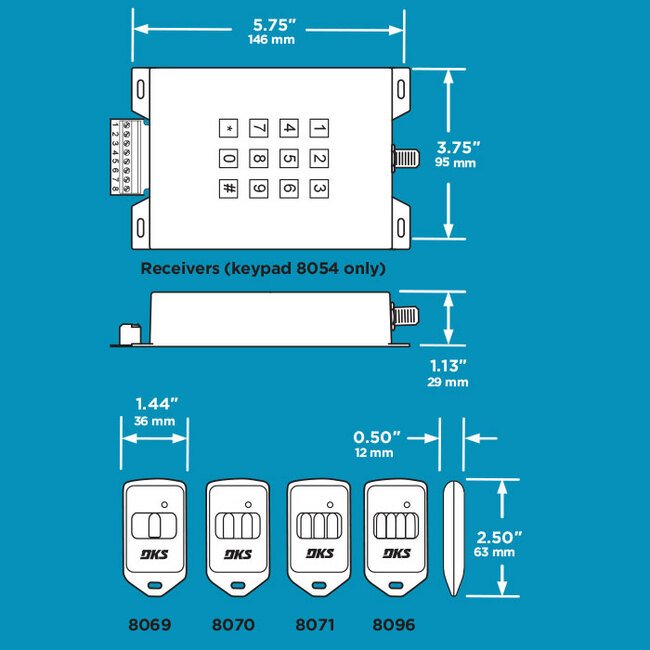

8040 ReceiverPrimarily used as a 26, 30 or 31-bit wiegand output receiverCan be set for stand-alone operation, 100 codes maximumLow power mode for solar-powered operationCan be used with MicroClik or MicroPlus transmittersForm C relay.12-24 volt AC or DC.8054 ReceiverStand-alone receiver.Built-in programming keypadStores up to 1250 transmitter codes2300 event transaction buffer.Output for serial printer.10 programmable time zones.Built-in clock / calendar.Form C dry contact relay.12-24 volt, AC or DC.
