Midwest Fasteners CD 700 Capacitor Discharge Welder
Midwest Fasteners CD 700 Capacitor Discharge Welder
SKU:STU-eacda3
Powerful CD 700 Capacitor Discharge Welder for insulation contractors, with high/low power range switch & cuphead weld pin contact mode. Compliant with A-A-59331.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Midwest Fasteners CD 700 Capacitor Discharge Welder
$2,899.99
Quantity: 1
Claim Your Seller Account
Midwest Fasteners CD 700 Capacitor Discharge Welder
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

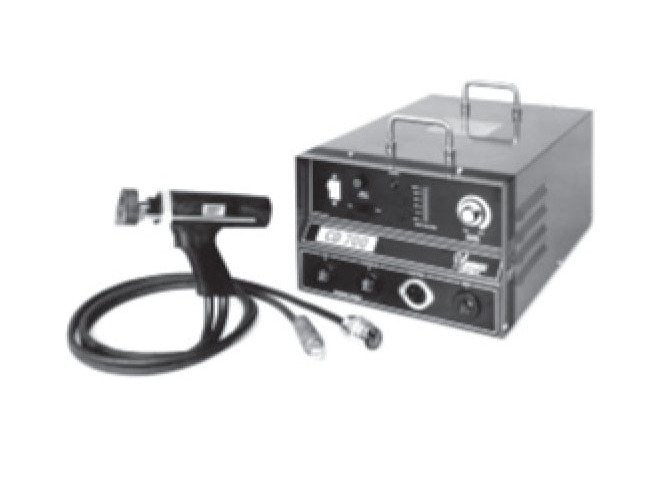

The Midwest Fasteners CD 700 Capacitor Discharge Welder is a powerhouse designed for insulation contractors, offering unmatched welding capabilities. With a variable capacitance high/low power range switch for tough applications, it can weld materials as thin as 20 gauge without burn through. Featuring a unique cuphead weld pin contact mode and compliant with A-A-59331 military specification, this welder ensures precision and reliability in every weld.
Product Specifications
Cables Ground Cable
#1 x 15 Ft. (One each)
Cables Gun Extension Set
#1 x 18/2 x 35 ft (Direct to Gun)
Key Features Incoming Power Voltage
115 V
Key Features Maximum Weld Diameter
M10
Key Features Maximum Weld Diameter Decimal
0.375 in
Key Features Maximum Weld Diameter Fraction
3/8 in
Key Features Minimum Weld Length
6 mm
Key Features Special Features Available
Cuphead (Mini-Cup) Pins
Key Features Weldable Material
Aluminum | Mild Steel | Stainless
Key Features Weld System
CD 700
Power Requirement Current
30 A
Power Requirement Frequency
60 Hz
Power Requirement Voltage Ac
115 V
Secondary Features Backside Marking On Thinner Material
Unacceptable
Secondary Features Minimum Material Thickness
0.03125 in (22 gauge) | 0.6 mm (22 gauge)
Secondary Features Weld Penetration
Surface Weld, Fail-in-fastener Minimum

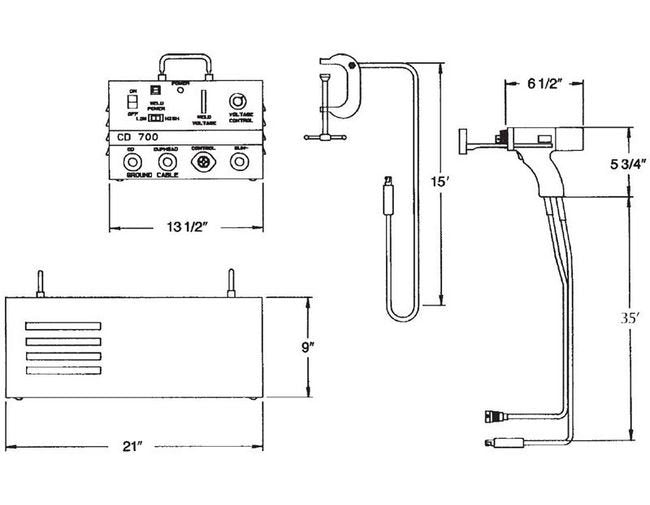

Specifications Depth
21 in
Specifications Height
9 in
Specifications High Capacitance
168,000 µF
Specifications Low Capacitance
84,000 µF
Specifications Minimum Weld Length Decimal
0.250 in
Specifications Minimum Weld Length Fraction
1/4 in
Specifications Pinstud Range
14 GA. thru 3/8" Dia. Weld Base
Specifications Stud To Base Weld Area
No Special Requirements
Specifications Weight
66 lb
Specifications Weld Mode
Contact | Cuphead
Specifications Weld Rate
Up to 14/min
Specifications Weld Voltage Dc
34 to 175 V
Specifications Width
13-1/2 in
Weld Gun Cd 2p Precision Material
High strength | impact-resistant polycarbonate
Weld Gun Cd 2p Precision Size Lwh
6-1/2 x 2 x 5-3/4 in
Weld Gun Cd 2p Precision Weight Not Including Cable
1-1/2 lb
