MIDWEST SureShotII CD Welder
MIDWEST SureShotII CD Welder
SKU:STU-1680fd
Powerful and Portable CD Welder for Precision Pins and Studs
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
MIDWEST SureShotII CD Welder
$899.99
Quantity: 1
Claim Your Seller Account
MIDWEST SureShotII CD Welder
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

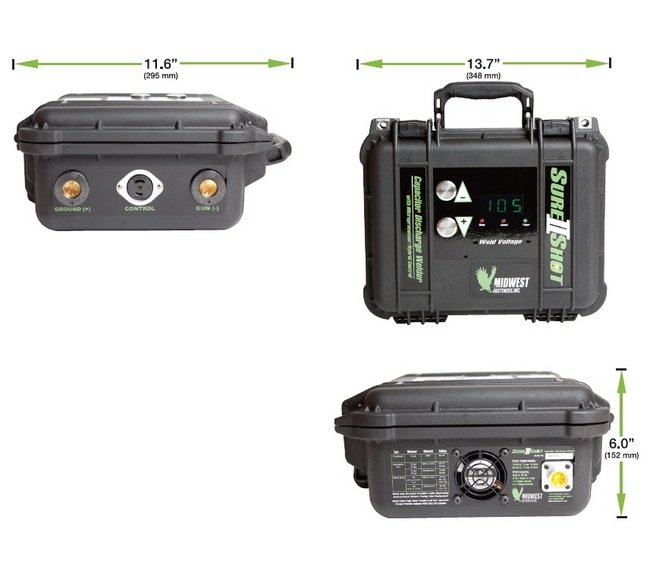

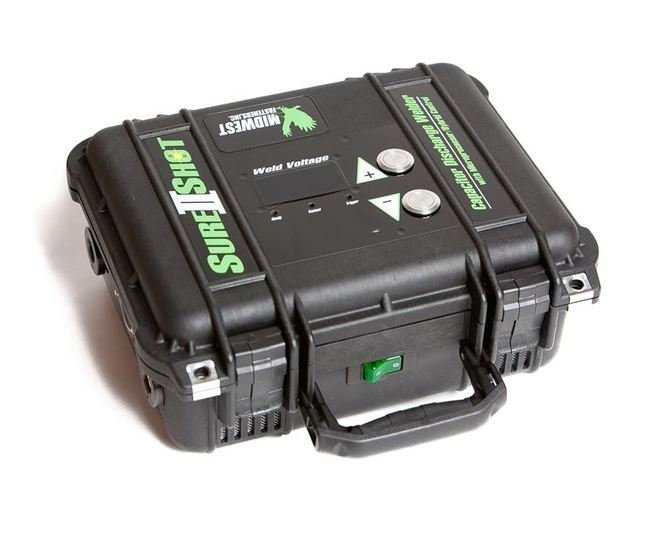

The MIDWEST SureShotII Capacitor Discharge (CD) Welder is a versatile solution for welding Cupheads, Mini-Cups, Weld Pins, and Weld Studs. With a maximum weld diameter of 5/16", this ultra-portable system operates on both 110VAC and 220VAC, offering weld power up to M8 size. Weighing only 18 pounds, the Hybrid Transformer/Microprocessor Unit ensures reliable performance on various insulation applications. Compliant with A-A-59331 Military Specification, it sets the standard for stud welding systems with DC integral power sources and control units.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Cables Ground Cable
#4 x 15 ft. (4.6 m) - one each
Cables Gun Cable Set
#4 x 18/2 x 20 ft. (6.1 m) - direct from gun
Capacity Specifications Charge Time
<3 seconds @ Max. Charge
Capacity Specifications Mode
Capacitor Discharge/Contact
Capacity Specifications Pinstud Range
14 ga. thru 5/16" dia. Weld Base (3 mm to M8)
Capacity Specifications Weld Rate
24 welds per Minute at Max. Voltage
Electrical Specifications Current At 110 Incoming Voltage Ac
15 A
Electrical Specifications Current At 220 Incoming Voltage Ac
7.5 A
Electrical Specifications Frequency At 110 Incoming Voltage Ac
50 Hz
Electrical Specifications Frequency At 220 Incoming Voltage Ac
60 Hz
Electrical Specifications Incoming Voltage Ac
110 V | 220 V
Electrical Specifications Outgoing Current
3000 to 9000 A
Electrical Specifications Outgoing Voltage Dc
35 to 160 V
Electrical Specifications Welding Capacitance
100,000 µF
Electrical Specifications Welding Current
DC
Key Features Incoming Power Voltage
115 V
Key Features Maximum Weld Diameter
M8
Key Features Maximum Weld Diameter Decimal
0.3125 in
Key Features Maximum Weld Diameter Fraction
5/16 in
Key Features Minimum Weld Length
6 mm
Key Features Special Features Available
Cuphead (Mini-Cup) Pins
Key Features Weldable Material
Aluminum | Mild Steel | Stainless
Key Features Weld System
SureShotll
Operational Specifications Operational Specifications
Indicator Lights (3) Resettable Breaker Thermal Fan Safety Shutdowns 7-Segment Digital Display
Secondary Features Backside Marking On Thinner Material
Unacceptable
Secondary Features Minimum Material Thickness
0.03125 in (22 gauge) | 0.6 mm (22 gauge)
Secondary Features Weld Penetration
Surface Weld, Fail-in-fastener Minimum
Specifications Minimum Weld Length Decimal
0.250 in
Specifications Minimum Weld Length Fraction
1/4 in
Specifications Stud To Base Weld Area
No Special Requirements
Specifications Weight
18 lb | 8.2 kg
Weld Gun Material
High strength, impact resistant polycarbonate
Weld Gun Size Lwh
4-7/8 x 2 x 5-3/4 in | 124 x 51 x 146 mm
Weld Gun Weld Gun Weight
1.6 lb | 0.73 kg
