MIDWEST Talon Capacitor Discharge Stud Welder
MIDWEST Talon Capacitor Discharge Stud Welder
SKU:STU-cfb779
Versatile MIDWEST Talon CD Stud Welder for precise welding of aluminum, steel, and stainless. Compliant with military standards.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
MIDWEST Talon Capacitor Discharge Stud Welder
$1,899.99
Quantity: 1
Claim Your Seller Account
MIDWEST Talon Capacitor Discharge Stud Welder
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

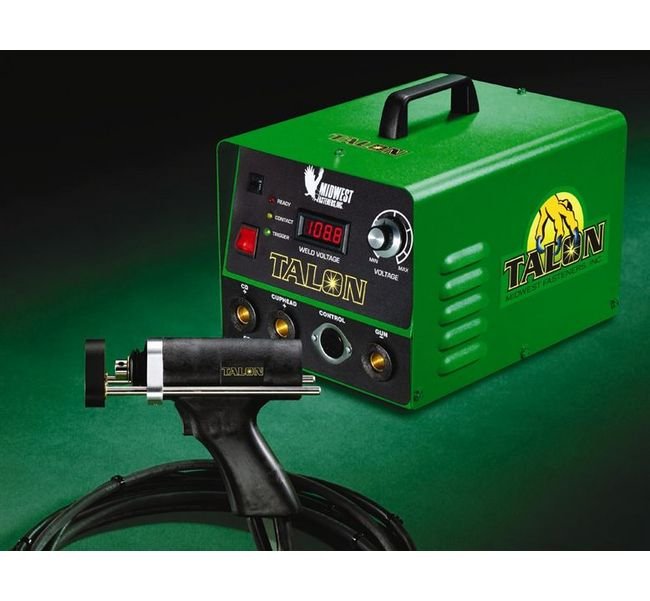

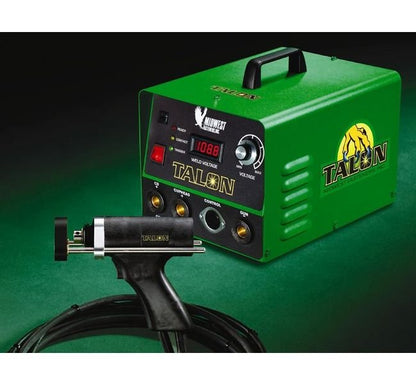

The MIDWEST Talon Capacitor Discharge Stud Welder is a versatile and reliable welding system designed for both consumer and institutional users. With a maximum weld diameter of 1/4 inch and the ability to weld aluminum, mild steel, and stainless steel, this machine offers exceptional welding capabilities. It complies with A-A-59331 military specifications for stud welding systems, ensuring top-notch performance and reliability. With features like Cuphead pins and a welding rate of up to 20/min, the Talon CD welder is a powerful addition to any welding workshop.
Product Specifications
Cables Ground Cable
#4 x 15 ft (One Each)
Cables Gun Extension Set
#4 x 18/2 x 35 ft (Direct to Gun)
Key Features Incoming Power Voltage
115 V
Key Features Maximum Weld Diameter
M6
Key Features Maximum Weld Diameter Decimal
0.250 in
Key Features Maximum Weld Diameter Fraction
1/4 in
Key Features Minimum Weld Length
6 mm
Key Features Minimum Weld Length Decimal
0.250 in
Key Features Minimum Weld Length Fraction
1/4 in
Key Features Special Features Available
Cuphead (Mini-Cup) Pins
Key Features Weldable Material
Aluminum | Mild Steel | Stainless
Key Features Weld System
Talon
Power Requirement Current
20 A
Power Requirement Frequency
60 Hz
Power Requirement Voltage Ac
115 V
Secondary Features Backside Marking On Thinner Material
Unacceptable
Secondary Features Minimum Material Thickness
0.03125 in (22 gauge) | 0.6 mm (22 gauge)
Secondary Features Weld Penetration
Surface Weld, Fail-in-fastener Minimum
Specifications Capacitance
70,000 µF

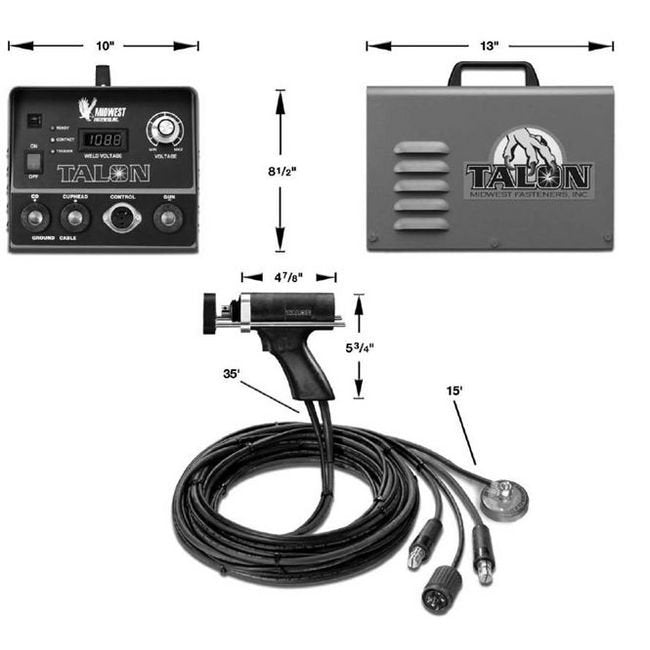

Specifications Depth
13 in
Specifications Height
8-1/2 in
Specifications Pinstud Range
14 GA. thru 1/4" Dia. Weld Base
Specifications Stud To Base Weld Area
No Special Requirements
Specifications Weight
29 lb
Specifications Weld Mode
Contact | Cuphead
Specifications Weld Rate
Up to 20/min
Specifications Weld Voltage Dc
35 to 175 V
Specifications Width
10 in
Weld Gun Talon Cd Material
High strength | impact-resistant polycarbonate
Weld Gun Talon Cd Size Lwh
4-7/8 x 2 x 5-3/4 in
Weld Gun Talon Cd Weight Not Including Cable
1.6 lb
