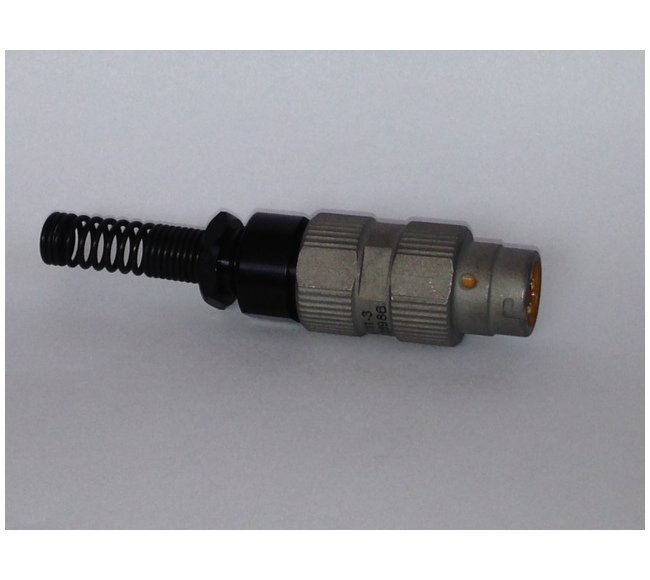

MIL-C-55116 6-Contact Audio Jack Receptacle
MIL-C-55116 6-Contact Audio Jack Receptacle
SKU:M55-2c66a5
High-performance MIL-C-55116 Audio Jack Receptacle with 6 contacts, stainless steel shell, and gold-plated brass contacts. Meets MIL-C-55116 specifications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MIL-C-55116 6-Contact Audio Jack Receptacle
$29.99
Quantity: 1
Claim Your Seller Account
MIL-C-55116 6-Contact Audio Jack Receptacle
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MIL-C-55116 Audio Jack Receptacle is a durable and reliable connector suitable for a wide range of applications. With a shell made of stainless steel, 303, passivated material and gold-plated brass contacts, this audio jack ensures a secure connection and excellent conductivity. It features 6 contacts, crimp sleeve spring contact types, wire strain relief, and a thermoset plastic insert, meeting rigorous MIL-C-55116 specifications. The bayonet coupling mechanism allows for quick and easy mating cycles with a durability of up to 3000 cycles. Ideal for demanding environments, this audio jack operates in temperatures ranging from -55 to 85°C with a maximum current rating of 0.5 A and voltage rating of 60 V.
Product Specifications
Specifications Alternate Pn
M55116/12 | U-228 Type
Specifications Connector Style
Receptacle
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Crimp Sleeve Spring
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
6
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Strain Relief
Wire
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
