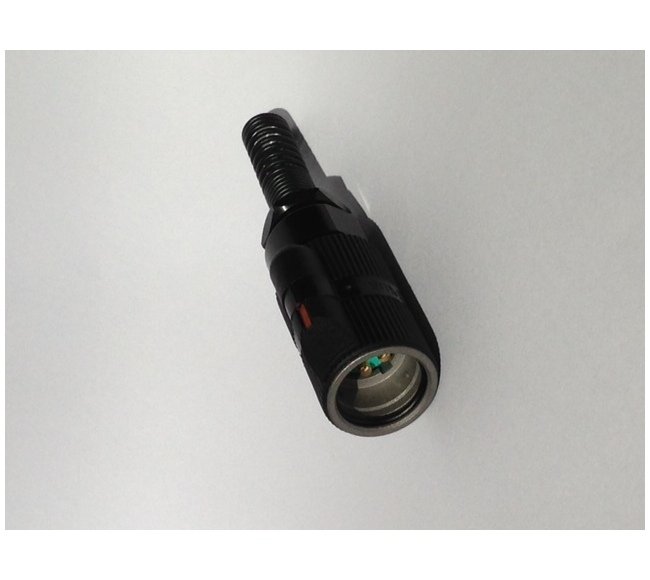

Enhance your audio connectivity with our MIL-C-55116 Audio Plugs. These ruggedized commercial/military-grade connectors feature wire strain relief, crimp sleeve terminals, stainless steel shell material, gold-plated brass contacts, and a bayonet coupling for secure mating. With 5 contacts, a temperature range of -55 to 85°C, and water immersion resistance up to 6 feet for 48 hours, these plugs meet stringent MIL-C-55116 standards, ensuring reliability in demanding environments.
Product Specifications
Specifications Alternate Pn
M55116/1 | U-229 Type
Specifications Application
Ruggedized Commercial / Military
Specifications Connector Style
Plug
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Crimp
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
5

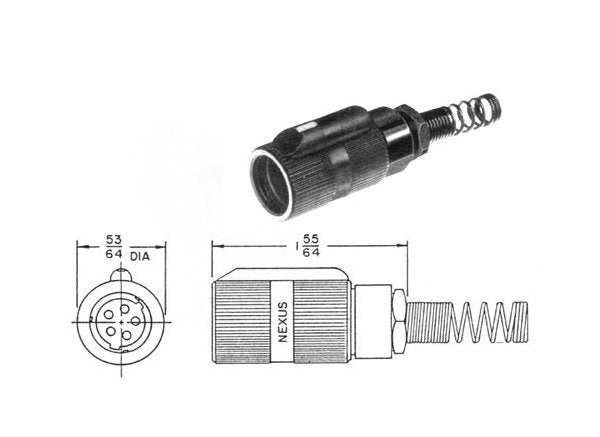

Specifications Overall Diameter
.828 in
Specifications Overall Length
1.859 in
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Standard
MIL-C-55116
Specifications Strain Relief
Wire
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
