MIL-C-55116 Audio Plugs - 6-Contact Plug Connector

MIL-C-55116 Audio Plugs - 6-Contact Plug Connector

SKU:M55-1968bc

Durable MIL-C-55116 Audio Plugs with stainless steel shell, molded strain relief, and gold-plated contacts for secure audio connections.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

MIL-C-55116 Audio Plugs - 6-Contact Plug Connector

MIL-C-55116 Audio Plugs - 6-Contact Plug Connector

$24.99

Quantity: 1

Claim Your Seller Account

MIL-C-55116 Audio Plugs - 6-Contact Plug Connector

MIL-C-55116 Audio Plugs - 6-Contact Plug Connector

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MIL-C-55116 Audio Plugs offer a ruggedized commercial and military-grade solution for reliable audio connections. Featuring a stainless steel shell with molded strain relief and solder cup terminals, these connectors ensure durability and secure connections. With a bayonet coupling mechanism and gold-plated brass contacts, they provide excellent conductivity and a current rating of 0.5 A. Meeting MIL-C-55116 standards, these plugs are designed for temperatures ranging from -55 to 85 °C, making them ideal for demanding environments. Additionally, with an insulation resistance of 1000 megaohms min and a dielectric withstanding voltage of 500 V, these audio plugs ensure safety and reliability in various applications.

Product Specifications

Specifications Alternate Pn
M55116/8 | U-182 Type
Specifications Application
Ruggedized Commercial / Military
Specifications Connector Style
Plug
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Solder
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
6

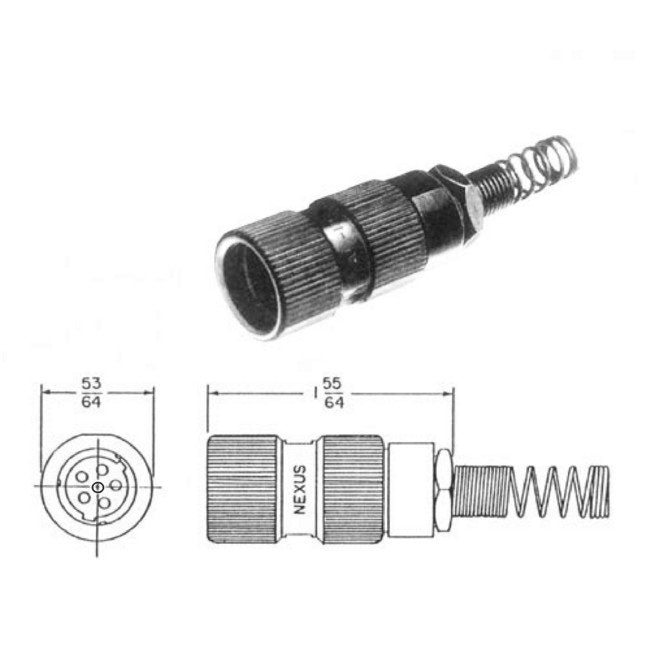

Specifications Overall Diameter
.828 in
Specifications Overall Length
1.859 in
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Standard
MIL-C-55116
Specifications Strain Relief
Molded
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
