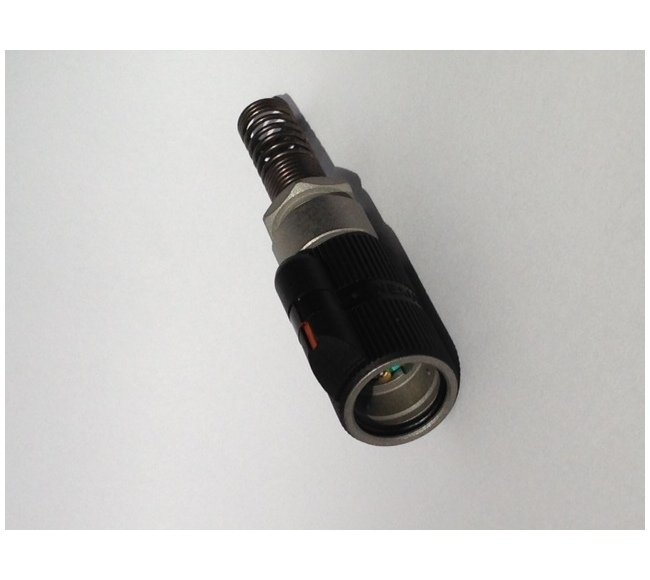

MIL-C-55116 Audio Plugs - 6-Contact Plug with Stainless Steel Shell
MIL-C-55116 Audio Plugs - 6-Contact Plug with Stainless Steel Shell
SKU:M55-8f44f4
High-performance MIL-C-55116 Audio Plugs with 6 contacts, stainless steel shell, and gold-plated brass contacts for durability and reliability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MIL-C-55116 Audio Plugs - 6-Contact Plug with Stainless Steel Shell
$29.99
Quantity: 1
Claim Your Seller Account
MIL-C-55116 Audio Plugs - 6-Contact Plug with Stainless Steel Shell
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MIL-C-55116 Audio Plugs are meticulously engineered to feature 6 contacts, solder contact types, and stainless steel 303 passivated shell material for exceptional durability. With features like bayonet coupling, gold-plated brass contacts, and a temperature range of -55 to 85 ºC, these plugs ensure reliable performance in challenging environments. Meeting stringent standards such as 3000 mating cycles, 500 V dielectric withstand voltage, and 1000 megaohms insulation resistance, these plugs are ideal for military, aerospace, and industrial applications.
Product Specifications
Specifications Alternate Pn
A3167702-2
Specifications Connector Style
Plug
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Solder
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
6
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Strain Relief
Wire
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
