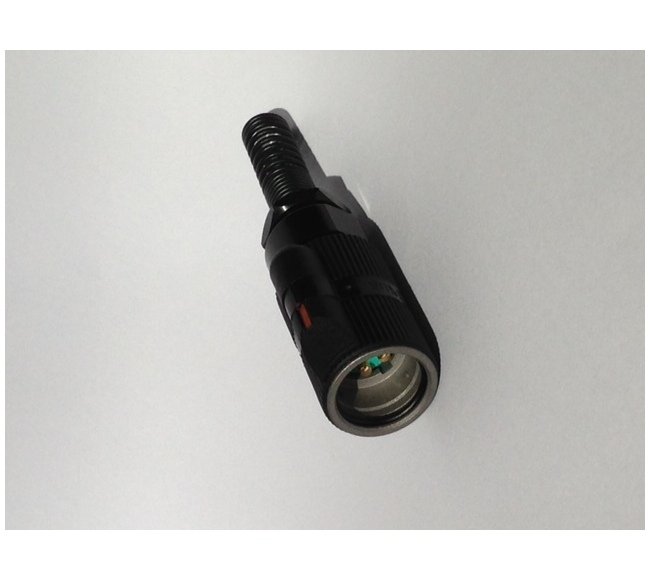

MIL-C-55116 Audio Plugs | 6-Contact Stainless Steel Plug Connector
MIL-C-55116 Audio Plugs | 6-Contact Stainless Steel Plug Connector
SKU:M55-3964f9
Enhance audio connections with MIL-C-55116 Audio Plugs. Rugged, reliable stainless steel connectors with wire strain relief and crimp sleeve terminals.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MIL-C-55116 Audio Plugs | 6-Contact Stainless Steel Plug Connector
$29.99
Quantity: 1
Claim Your Seller Account
MIL-C-55116 Audio Plugs | 6-Contact Stainless Steel Plug Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your audio connections with our MIL-C-55116 Audio Plugs, designed for rugged commercial and military applications. These stainless steel plug connectors feature wire strain relief and crimp sleeve terminals, ensuring secure and reliable connections. With specifications meeting MIL-C-55116 standards, including 6 contacts, bayonet coupling, and gold-plated brass contact material, these plugs are built for durability, withstanding temperatures from -55 to 85°C and up to 3000 mating cycles. Invest in quality audio connectivity that meets stringent military standards and guarantees long-lasting performance.
Product Specifications
Specifications Alternate Pn
M55116/2 | U-229 Type
Specifications Application
Ruggedized Commercial / Military
Specifications Connector Style
Plug
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Crimp
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
6

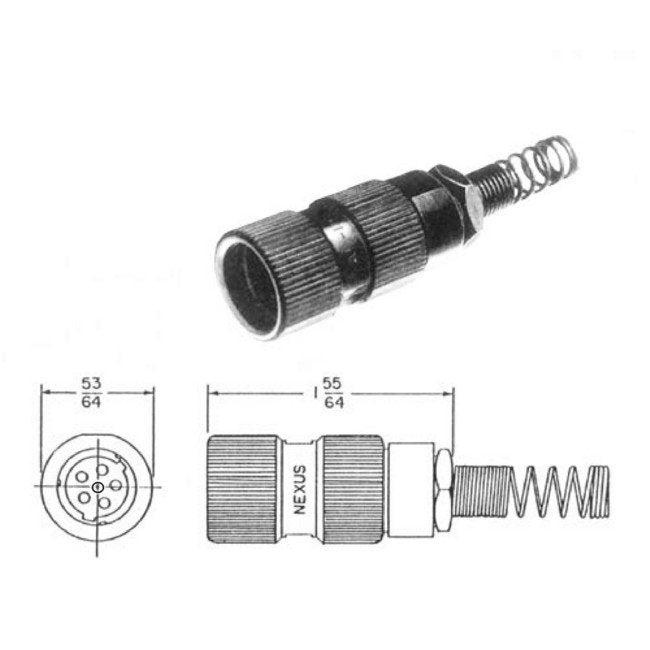

Specifications Overall Diameter
.828 in
Specifications Overall Length
1.859 in
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Standard
MIL-C-55116
Specifications Strain Relief
Wire
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
