The MIL-C-55116 Shielded Audio Plug with Solder Contacts is designed for ruggedized commercial and military applications. With 6 contacts and a stainless steel shell, this plug ensures durability and reliability. Meeting MIL-C-55116 standards, it features a bayonet coupling for secure connections, with a current rating of 0.5 A and a voltage rating up to 60 V. The gold-plated brass contacts provide superior conductivity, while the thermoset plastic insert ensures robust insulation. Ideal for environments with temperatures ranging from -55 to 85°C, this plug is water-resistant up to 6 feet for 48 hours.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Connector Style
Shielded Plug
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Solder
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
6

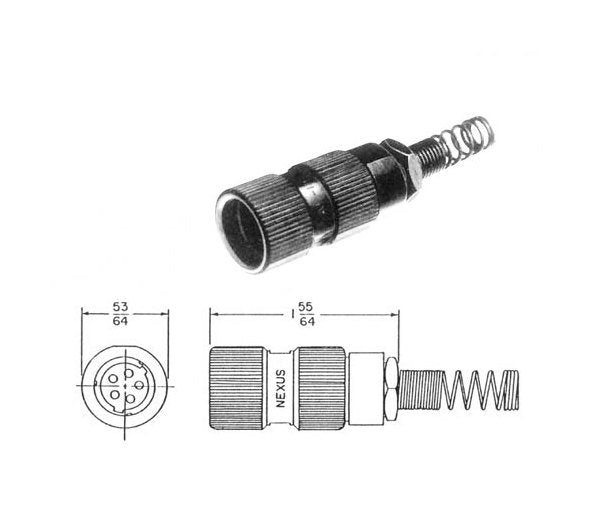

Specifications Overall Diameter
.828 in
Specifications Overall Length
1.953 in
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Standard
MIL-C-55116
Specifications Strain Relief
Wire
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
