Mil-Spec Audio Jack Connector
Mil-Spec Audio Jack Connector
SKU:M55-610330
Rugged Mil-Spec Audio Jack Connector with 5 contacts, stainless steel shell, and gold-plated brass contacts for reliable performance.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Mil-Spec Audio Jack Connector
$45.99
Quantity: 1
Claim Your Seller Account
Mil-Spec Audio Jack Connector
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

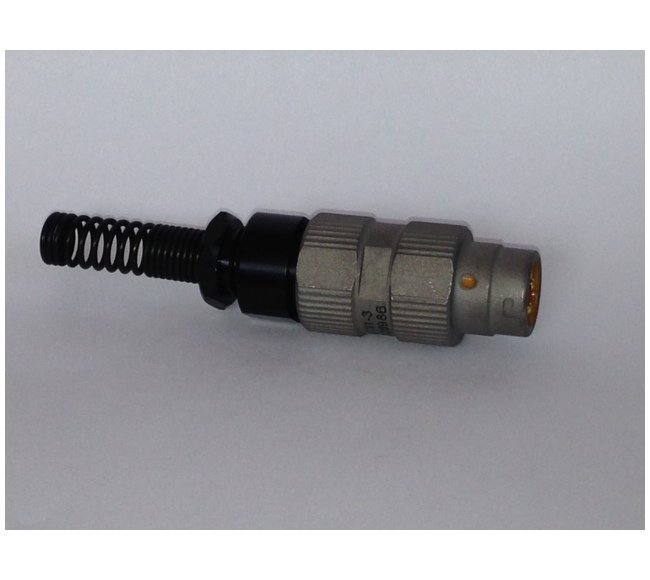

The Mil-Spec Audio Jack Connector, meeting MIL-C-55116 standards, is designed for rugged and reliable audio connections. With 5 solder cup spring contacts, stainless steel shell, and gold-plated brass contacts, this receptacle ensures secure and durable performance. Rated for up to 3000 mating cycles, it operates in temperatures from -55 to 85 °C, ideal for demanding environments. Additionally, it offers excellent electrical characteristics with a current rating of 0.5 A, maximum voltage rating of 60 V, and low contact resistance of .050 Ω.
Product Specifications
Specifications Alternate Pn
M55116/13 | U-228 Type
Specifications Connector Style
Receptacle
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Solder Cup Spring
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
5
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Strain Relief
Wire
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
